Anpeng Self Cleaning Screen Mesh

Anpeng Self Cleaning Wire Mesh series is designed for though-to-screen applications where blinding, pegging and clogging are a crucial problem. PU bands, made with 90 Shore A ( Poly Hardness ) polyurethane mesh, bind together with steel wires allowing high-frequency vibration during screening and creating the self-cleaning effect. Each wire on the self-cleaning screen vibrates at a different frequency, which creates the self-cleaning effects of all our self-cleaning series. The theory behind this is that a clogged material can pass through or bounce back up because the different vibration frequencies in wires essentially create alternating force from the opposite side of the mesh. As a leading woven wire mesh factory, the Anpeng self-cleaning series offers greater wear resistance and longer wear life, promising to significantly increase efficiency and lower the cost of production.

Anpeng Self Cleaning Wire Mesh Series

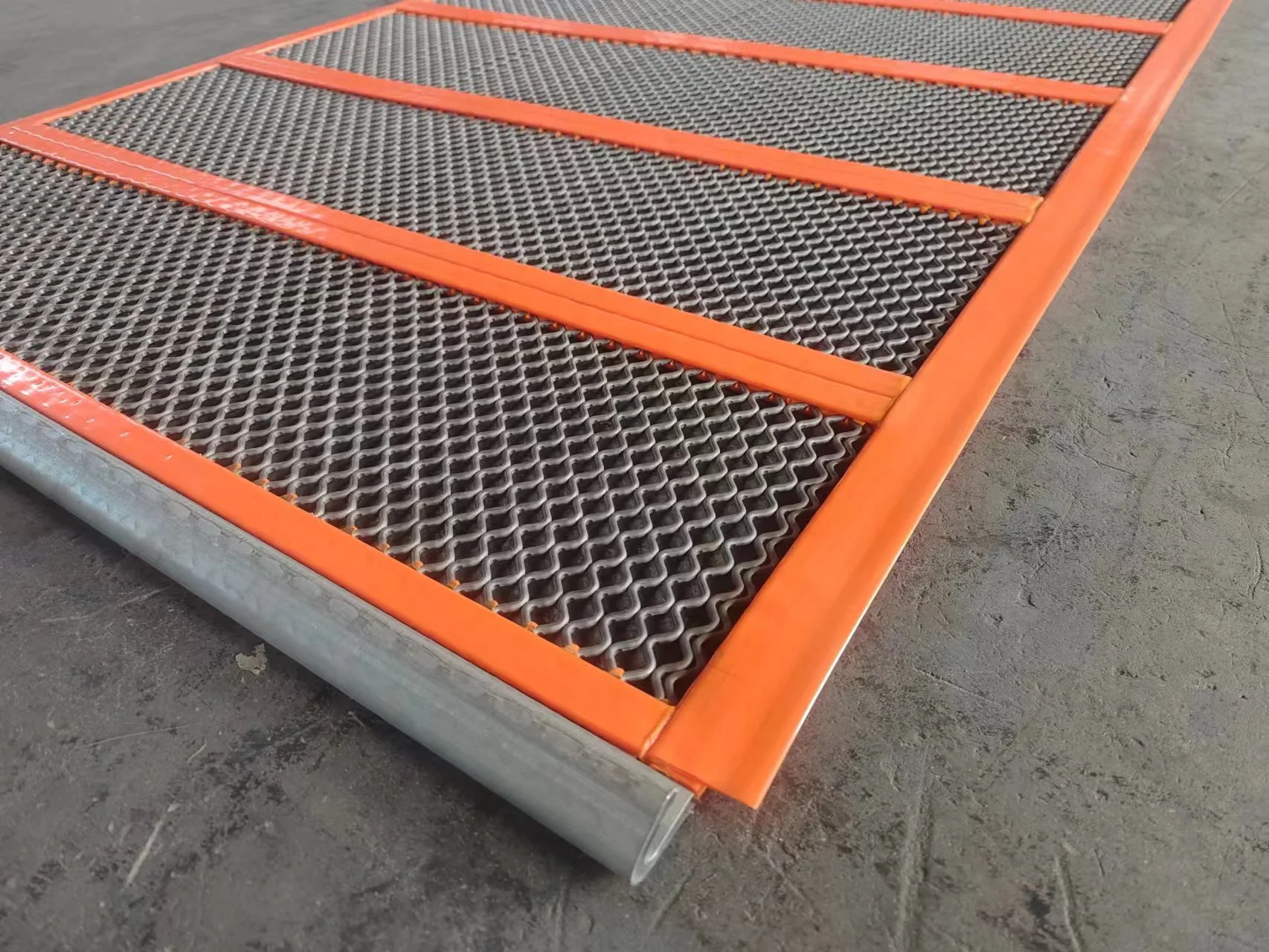

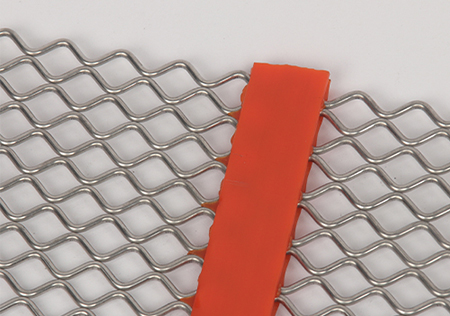

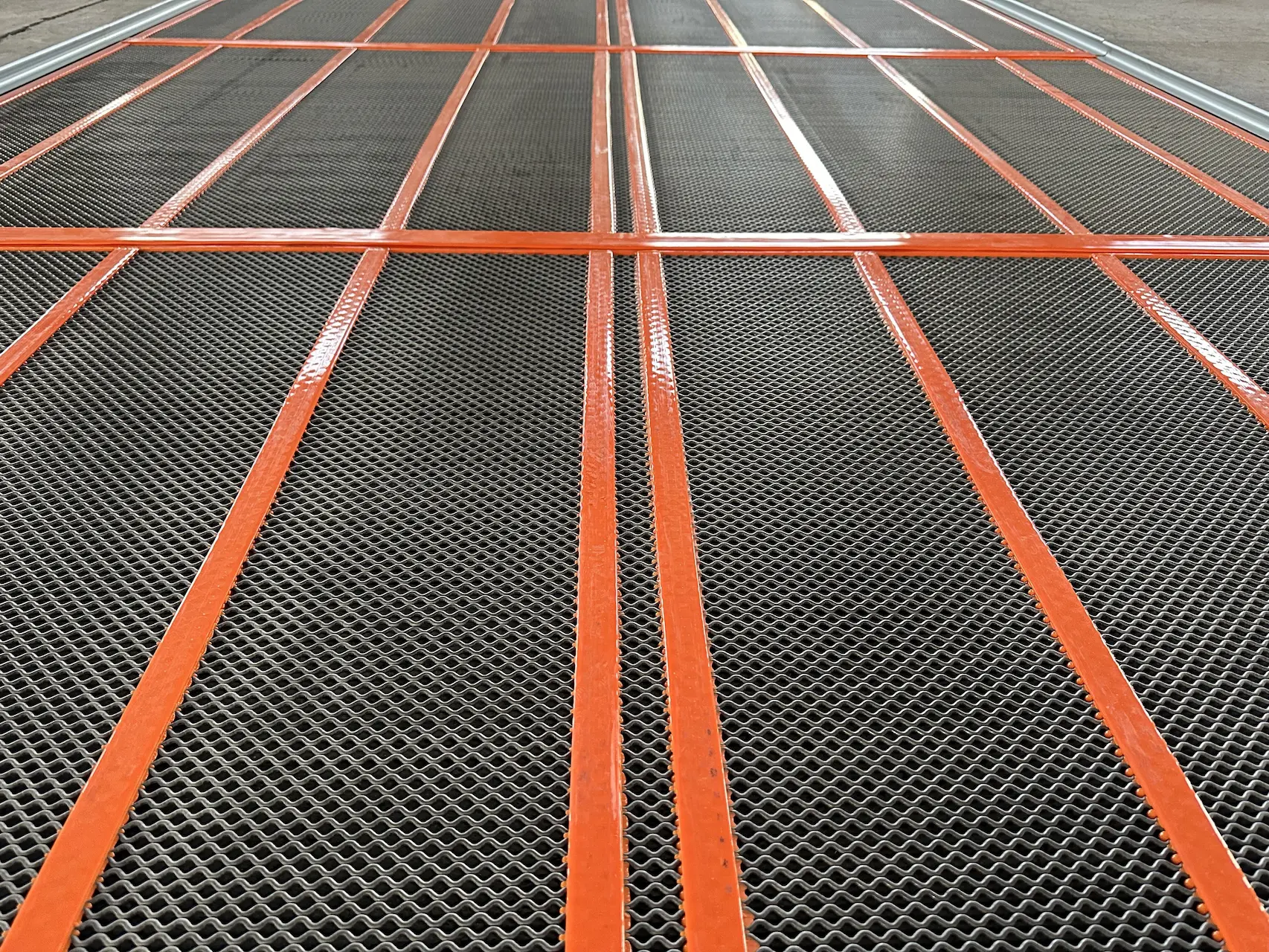

Diamond Opening Screen
Wire diameter: 1.2mm-12.7mm Opening size: 2.24mm~62.00mm This series produces high quality, consistent product and is effective in most general applications.

Diamond Opening Screen

Our most popular self cleaning screen mesh. It is similar to traditional square openings meshes, but with greater open area and increased throughput, providing precise material stratification and cleaner product.

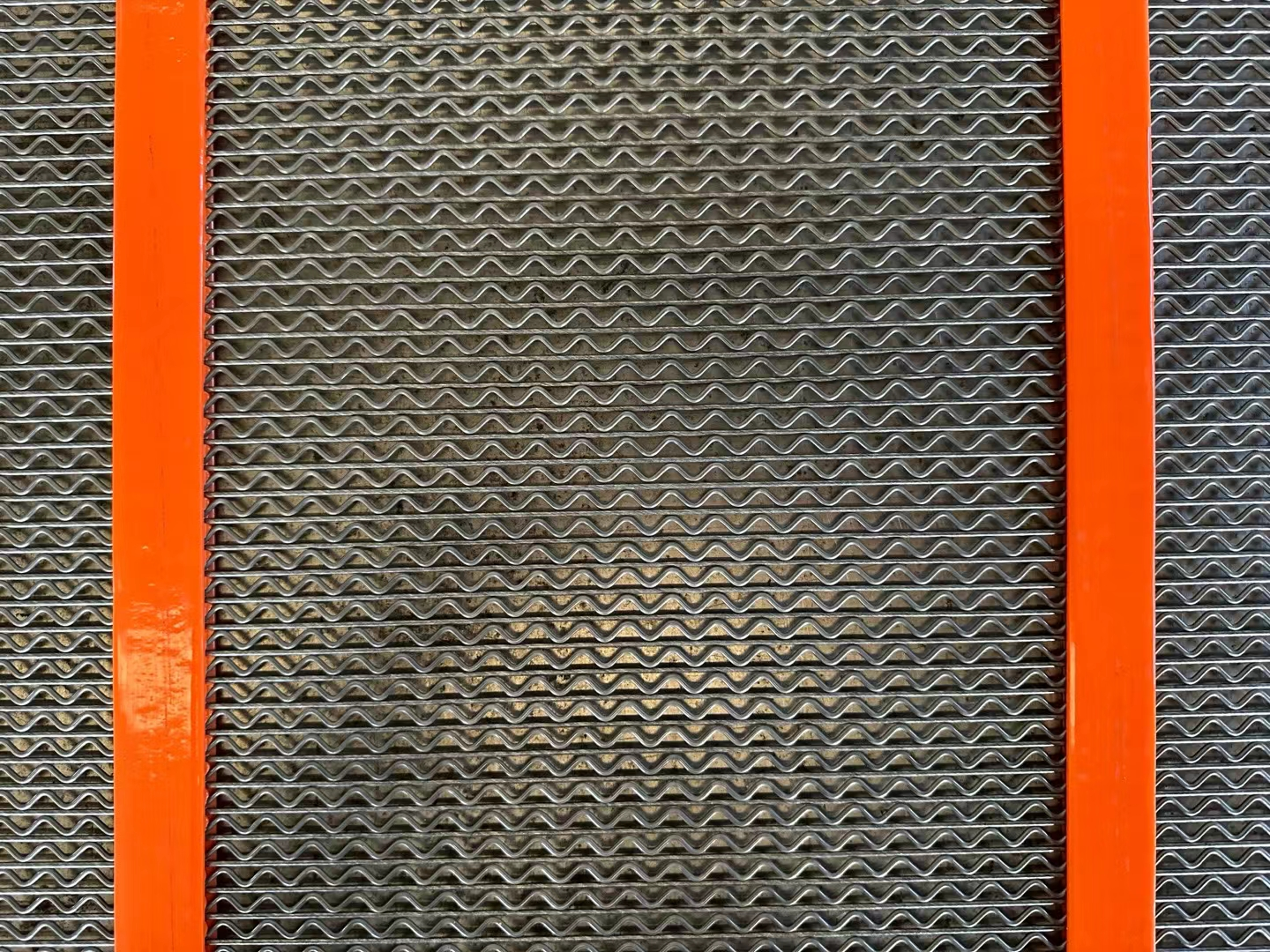

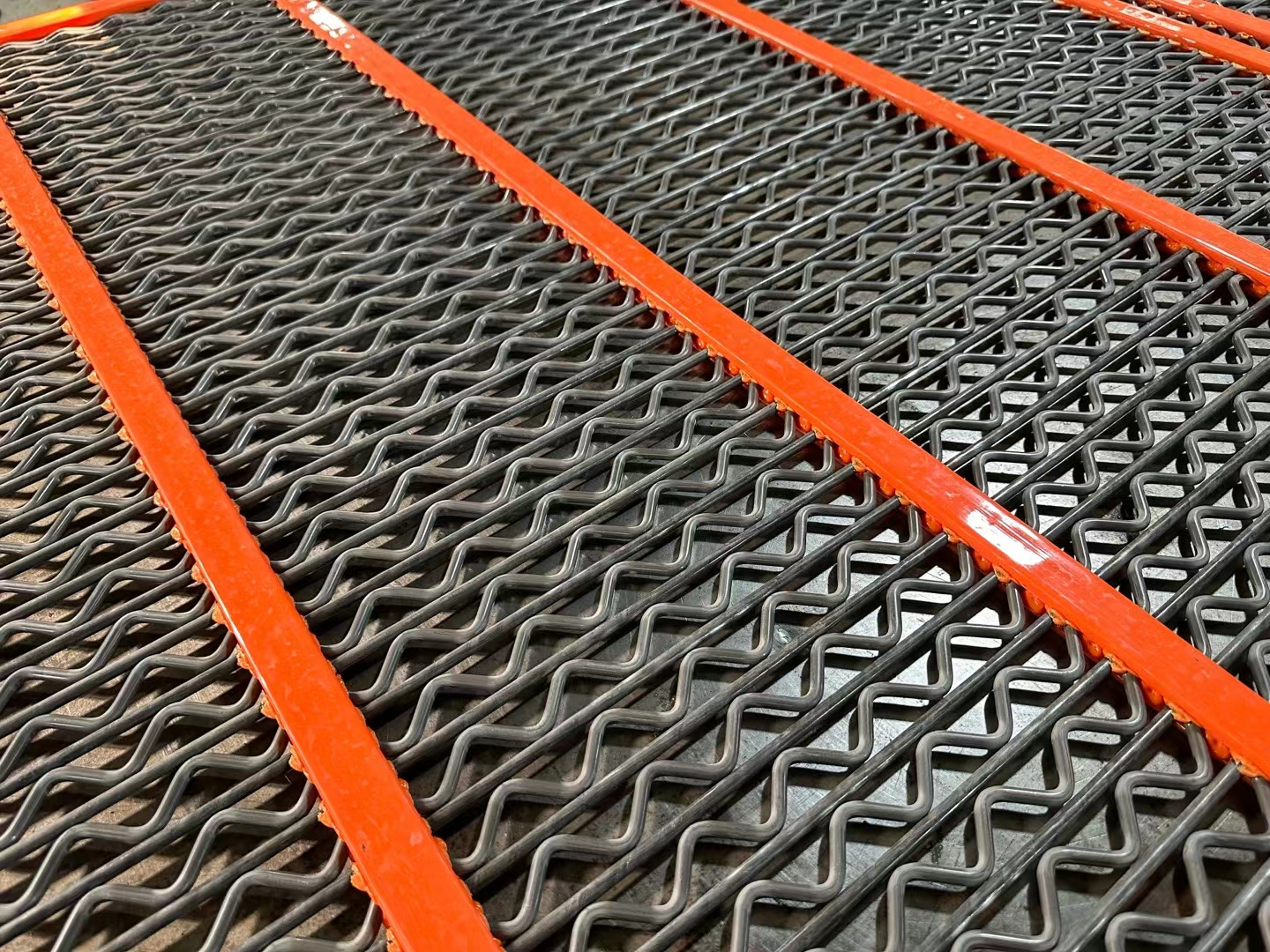

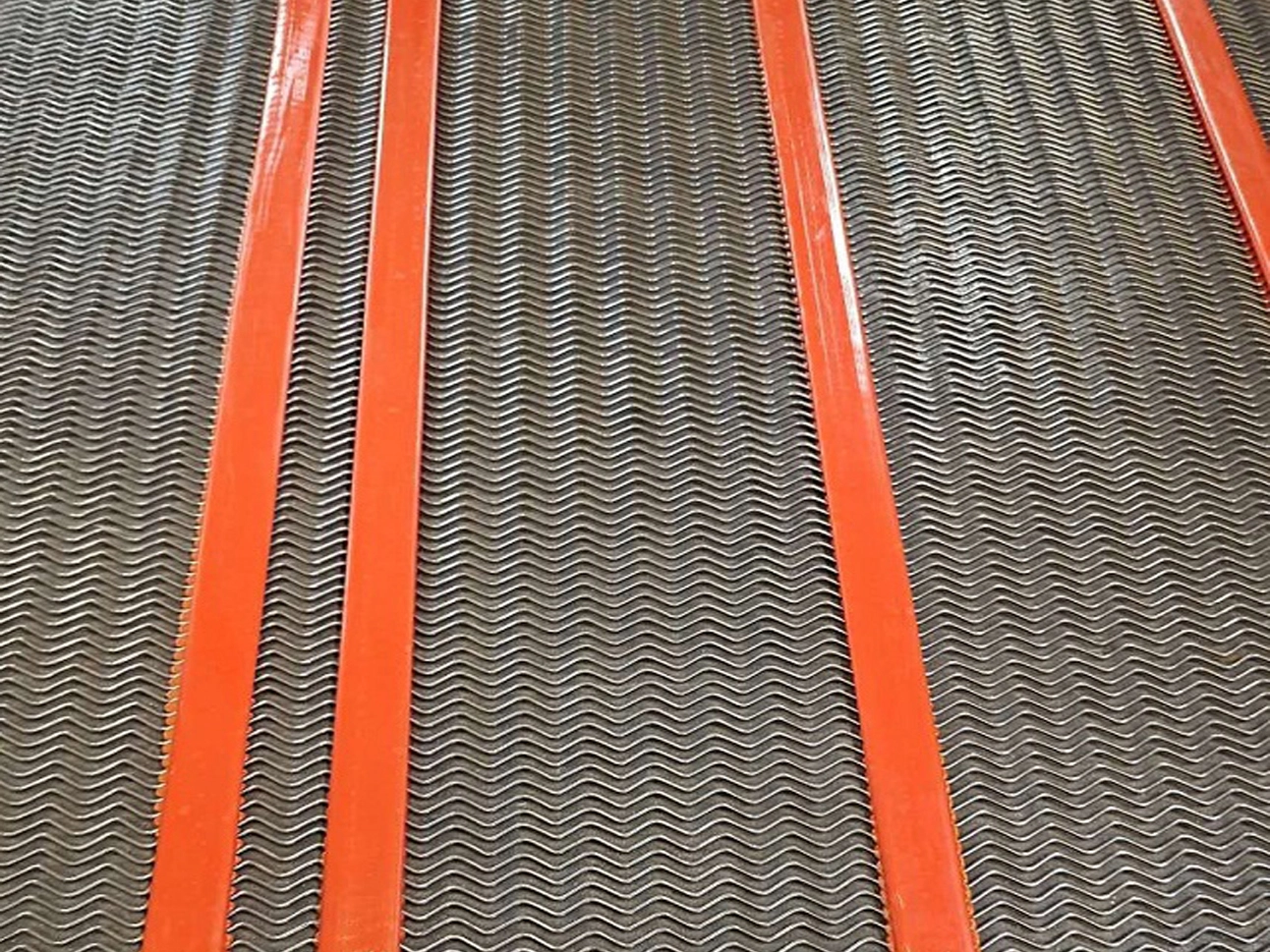

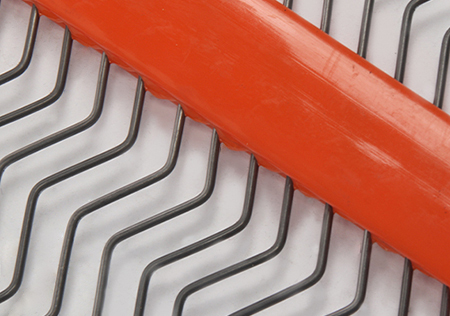

Wave Opening Screen
Wire diameter: 1.2mm-12.7mm Opening size:3.18mm~17.15mm This series delivers maximum throughput and ideal for removal of fines, producing a cleaner retained product.

Wave Opening Screen

Made with crimped wires placed parallel to each other, best used for severe blinding application, large open area offers effective sizing control, ideal for the removal of super fine materials and etc.

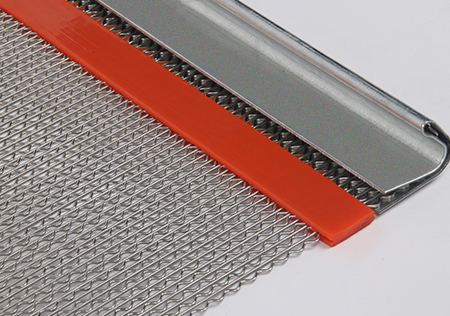

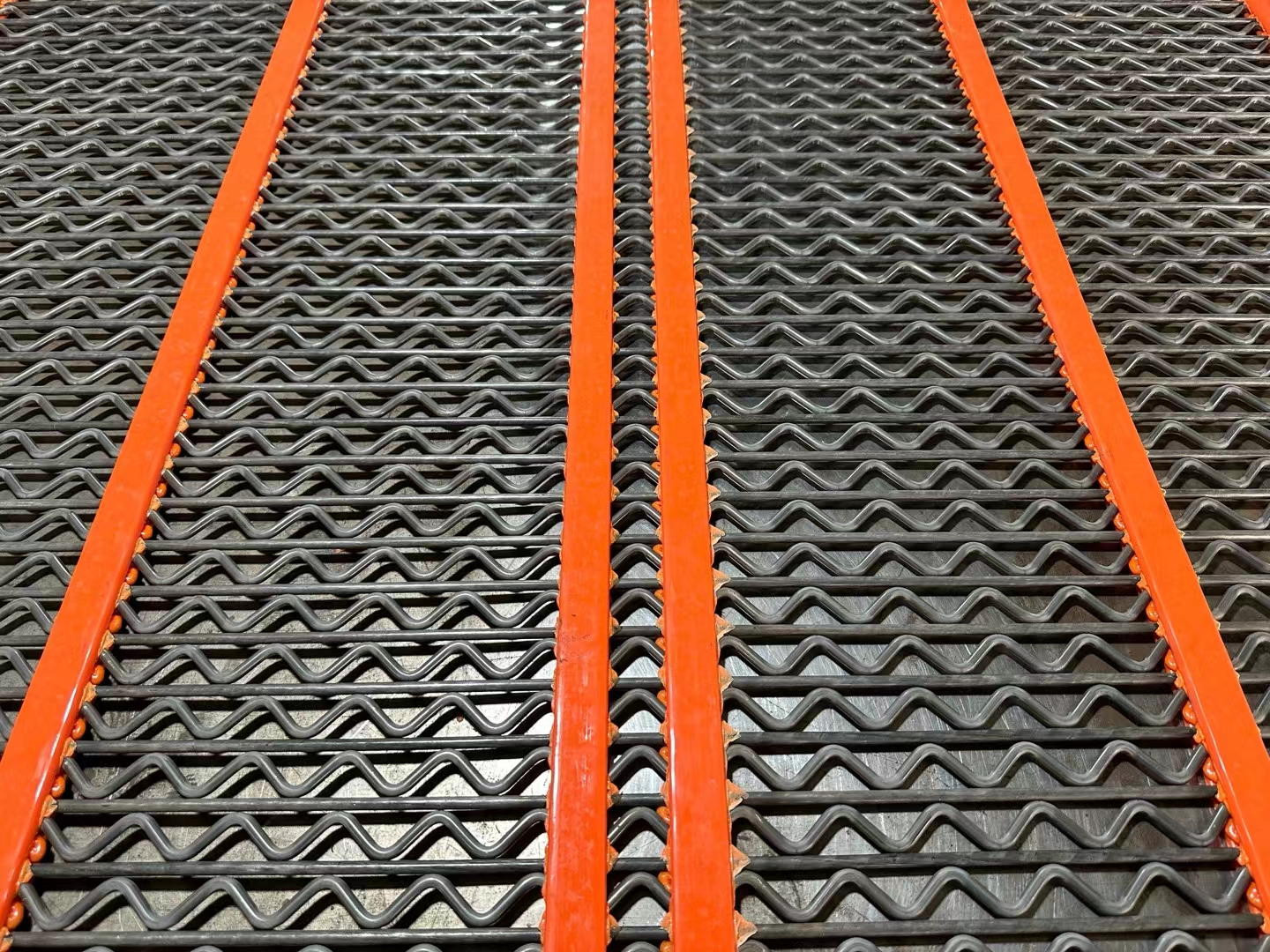

Triangle Opening Screen
Wire diameter: 1.2mm-12.7mm Opening size:1.2mm~20.00mm This series is designed for finer size material and absorb greater impact while maintaining accurate sizing.

Triangle Opening Screen

Unique combination of crimped and straight wire form the triangular opening shape to absorb impact, and improve accuracy of sizing. This is a perfect replacement of traditional fine mesh.

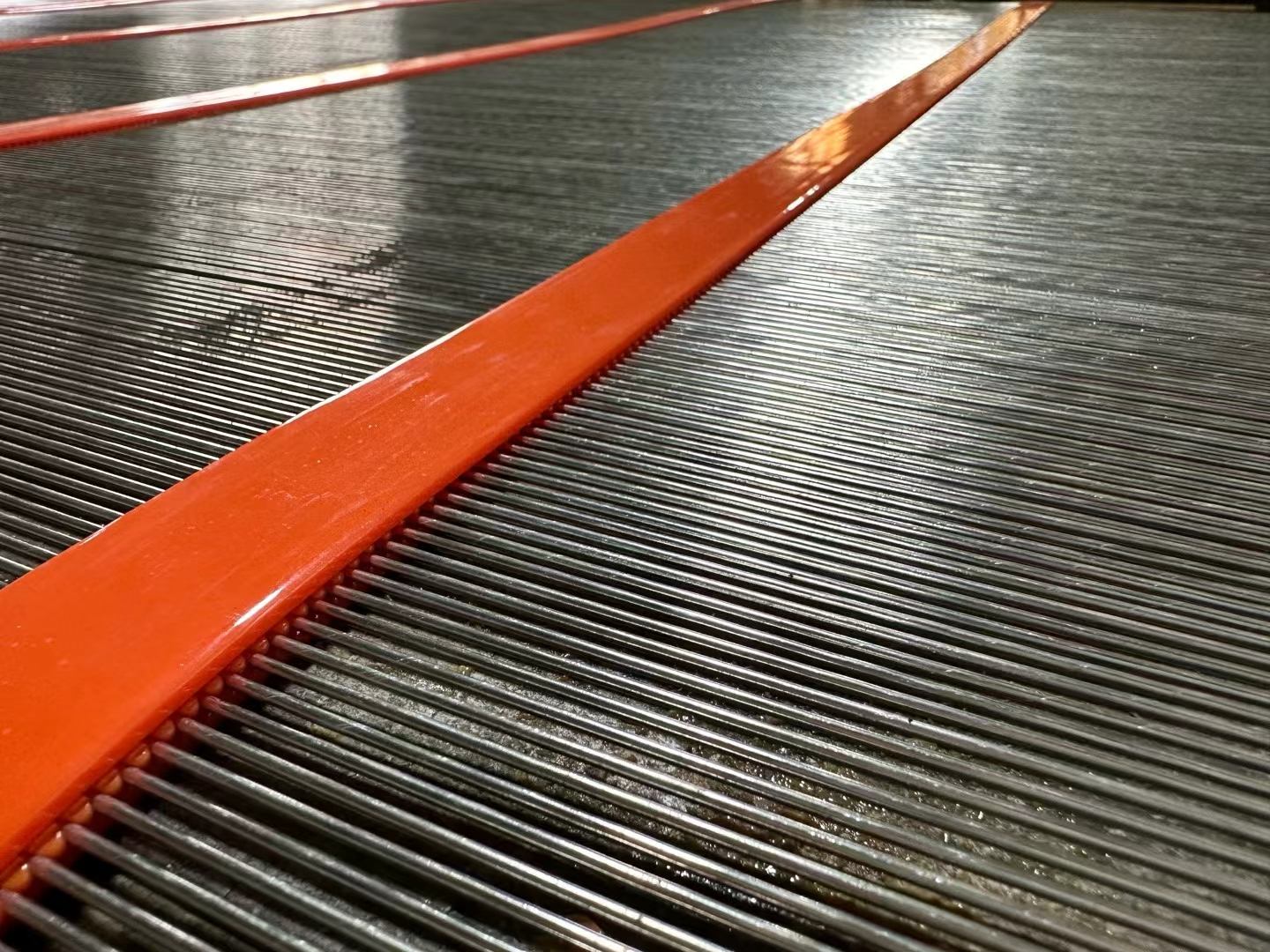

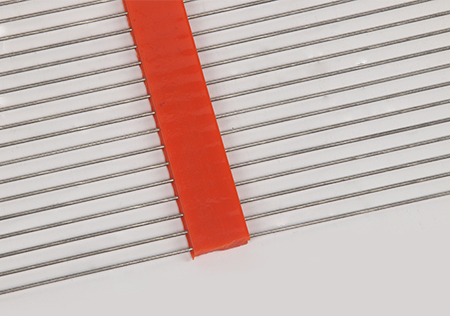

Harp Screen
Wire diameter: 1.2mm-12.7mm Opening size:4.0mm~25.00mm This series is designed in a standard piano wire screen style and most efficient in the dry screening of sand, gravel, topsoil and more.

Harp Screen

Designed to have the maximum open area, most efficiently in removing sand, gravel, topsoil, fines and etc.
Advantages of Anpeng Self-cleaning Screen Mesh

Advantages of Anpeng Self-cleaning Screen Mesh

High Tensile Steel
High Tensile Steel
High Tensile Steel

Self-cleaning screen is abrasion resistant, which is ideal for applications facing significant wear such as filtering rocks, sand and gravel.

Stainless Steel
Stainless Steel
Stainless Steel

Stainless steel wire screen is known for its high corrosion and temperture resistance, is extremely long-lasting and durable. It is ideal to be used in high humidity applications.

Polyurethane
Polyurethane
Polyurethane

Polyurethane screen mesh is known for its high load-bearing capacity in both tension and compression, and its abrasion and impact resistance property, Polyurethane is extremely wear proof in challenging applications even at very low temperture.

Overview on Self Cleaning Wire Mesh

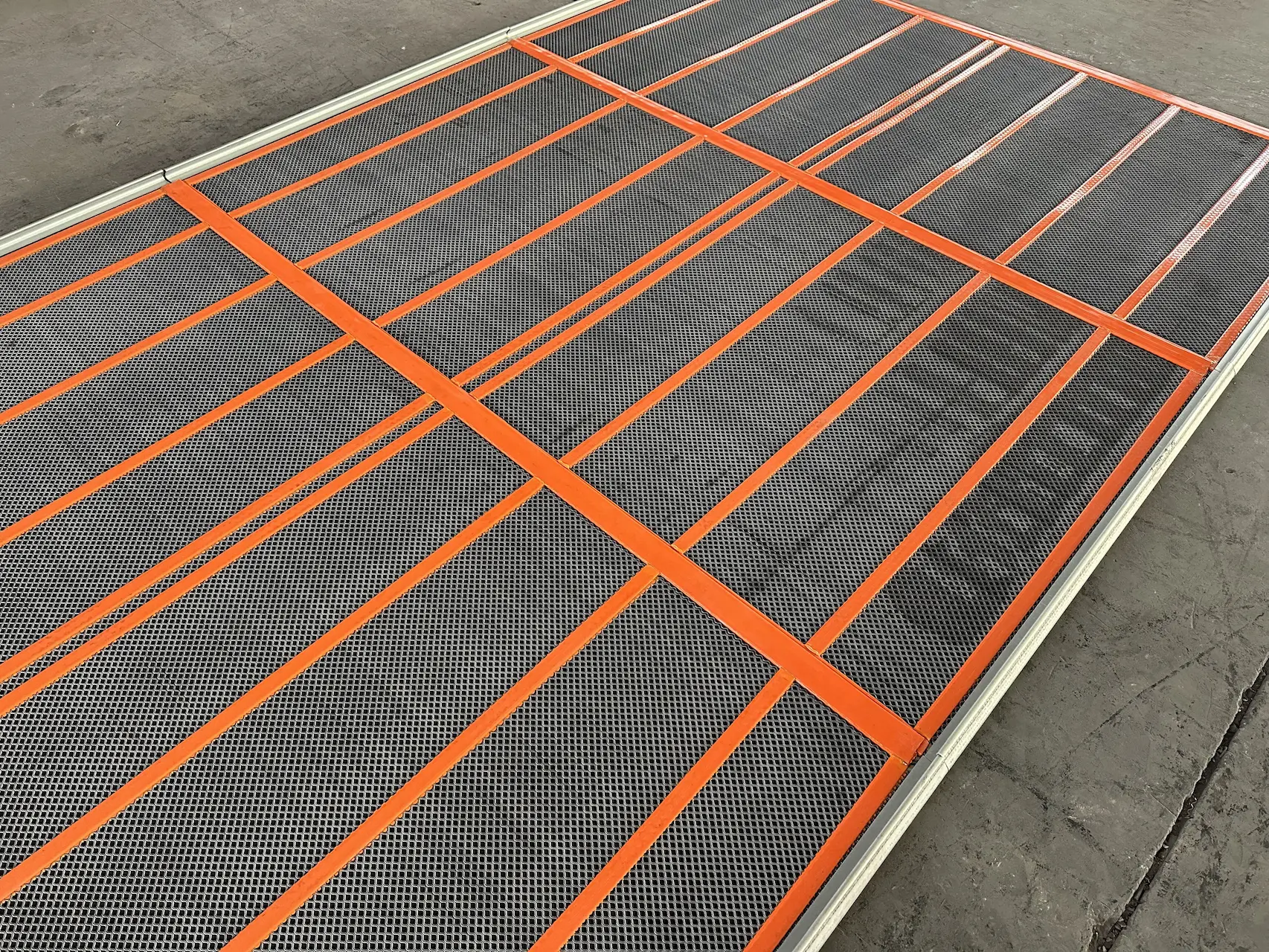

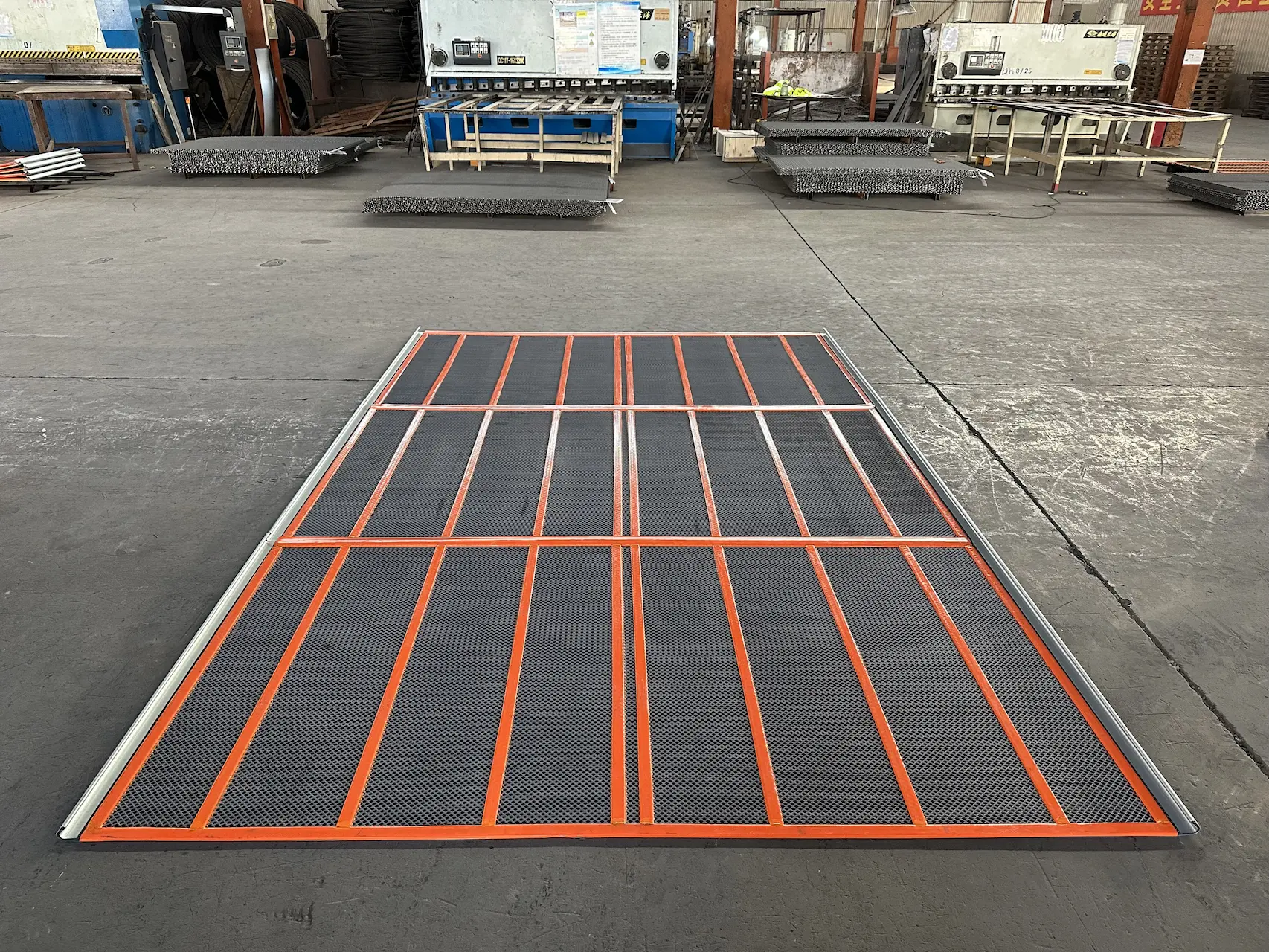

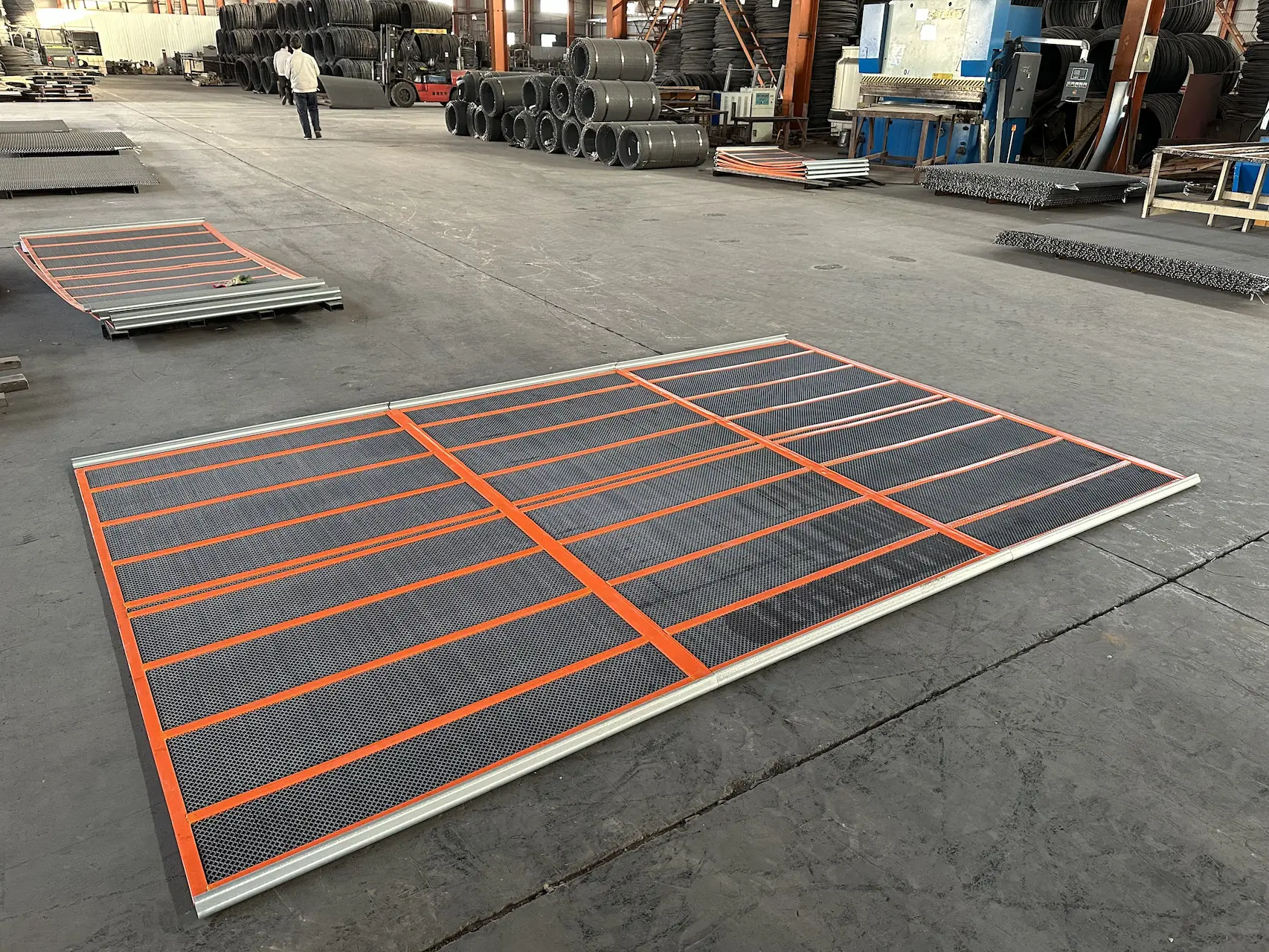

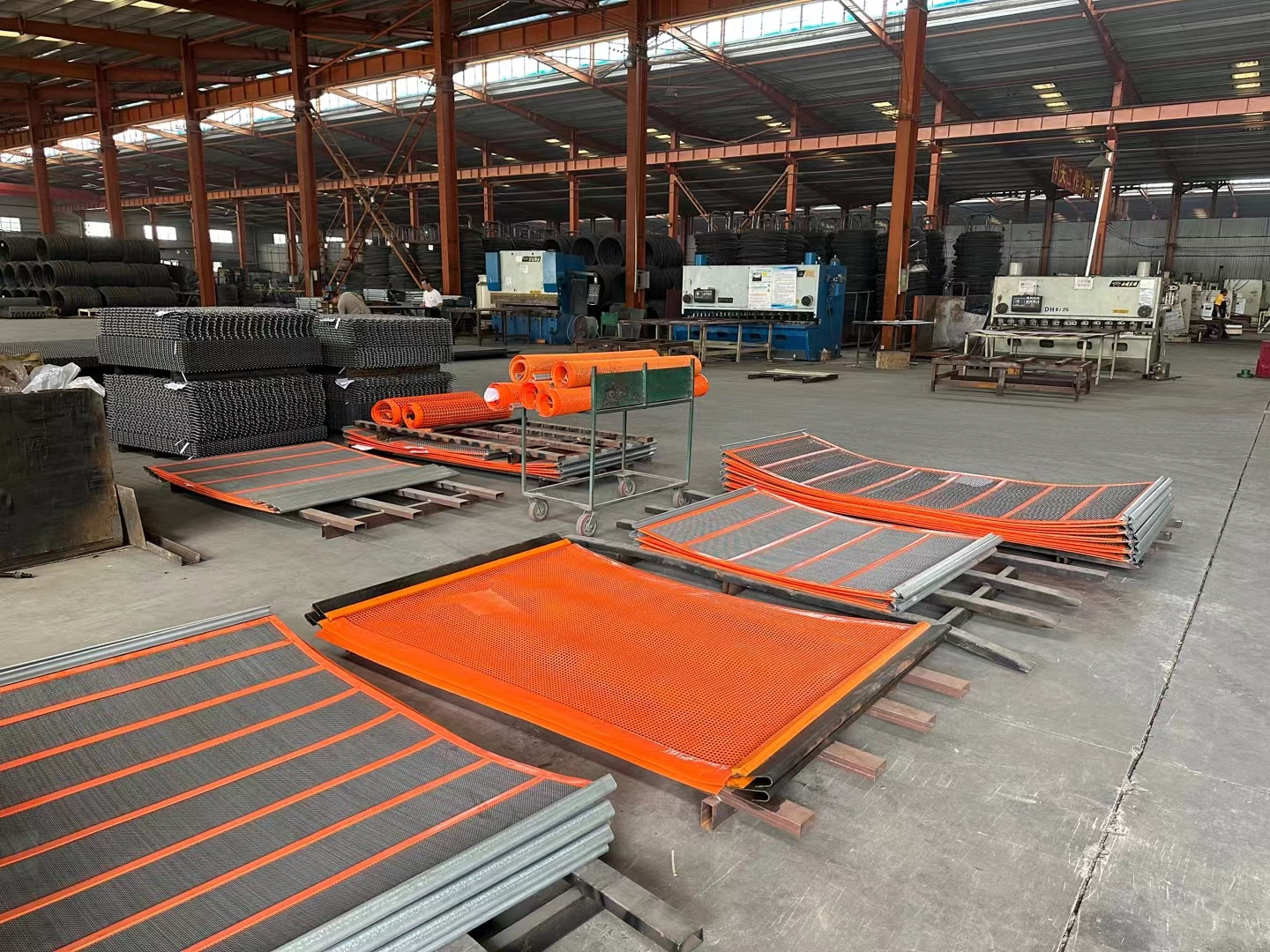

Self-cleaning Screens Display

self cleaning screen
self cleaning screen
self cleaning screen
self cleaning screen
self cleaning screen
self cleaning wire mesh
self cleaning wire mesh
1
2
3
4
3
