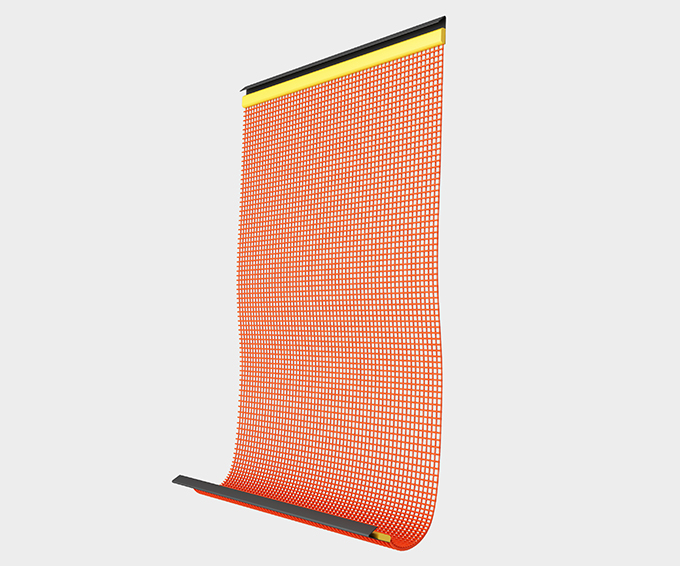

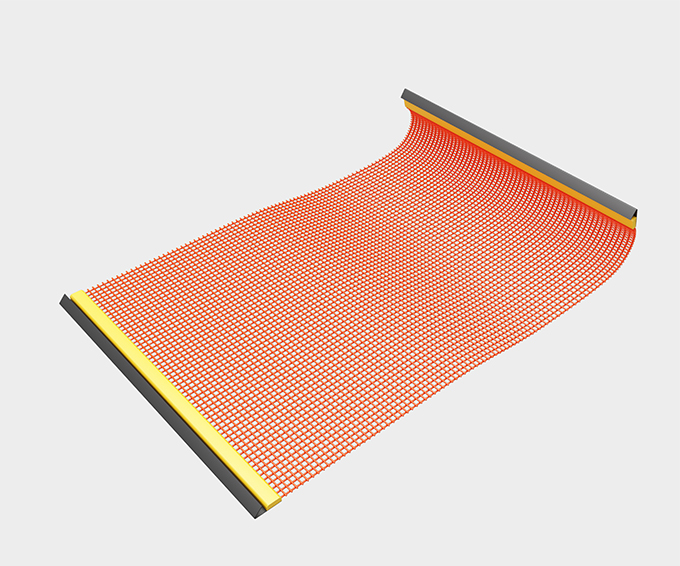

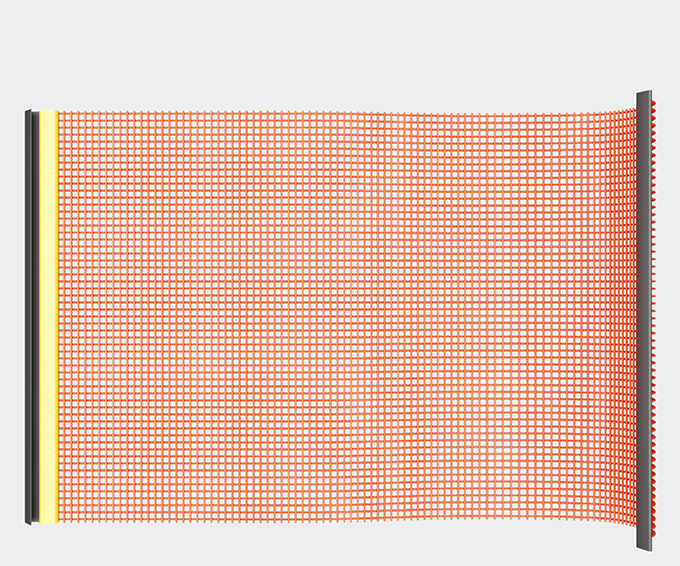

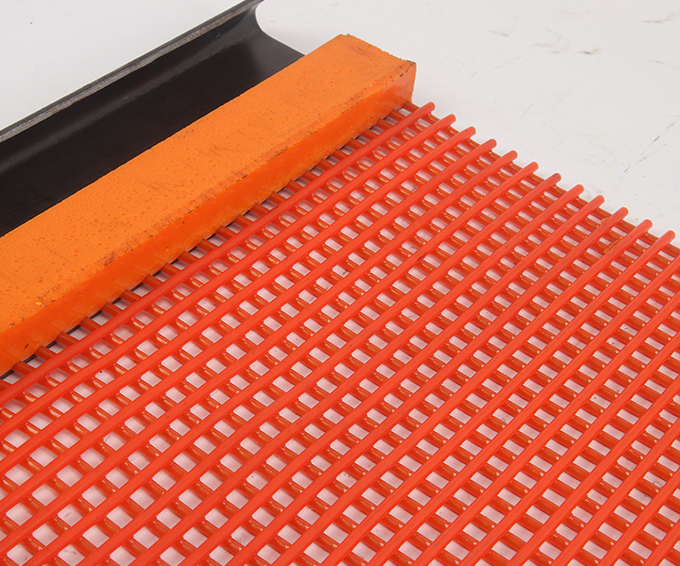

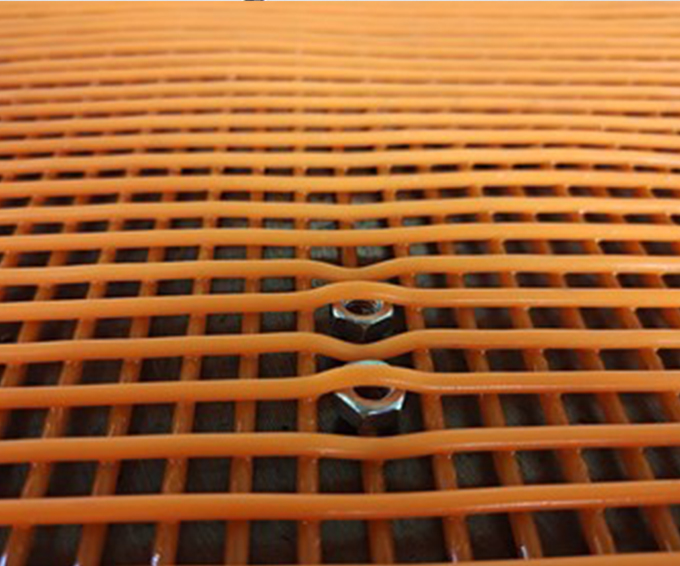

Anpeng PU-Mesh (polyurethane mesh) is made of abrasion-resistant polyurethane materials with a steel wire structure embedded. PU Screen Mesh comes in square or slotted openings in either fully welded or partially welded style. Polyurethane screen mesh offers improved efficiency compared with traditional wire screens, with higher durability, and longer wear life at much lower maintenance costs. PU screen mesh is an extremely cost-effective screening solution for a wide variety of difficult applications, especially for wet or high-humidity screening. The proprietary design makes the urethane screens extremely light, flexible, and easy to install. It has excellent performance in a harsh environment with good resistance to various acids, alkalis, and organic solvents.
| Item No. | Opening (mm) | Wire Size (mm) |
| 1 | 1.5 | 1.5 |
| 2 | 3 | 1.5 |
| 3 | 2 | 1.6 |
| 4 | 2 | 1.6 |
| 5 | 2.3 | 1.6 |
| 6 | 2.5 | 1.6 |
| 7 | 2.8 | 1.6 |
| 8 | 3 | 1.6 |
| 9 | 3 | 1.6 |
| 10 | 3.5 | 1.6 |
| 11 | 2.3 | 2 |
| 12 | 3 | 2 |
| 13 | 3.5 | 2 |
| 14 | 4 | 2 |
| 15 | 4 | 2 |
| 16 | 4.3 | 2 |
| 17 | 3 | 2.5 |
| 18 | 3.2 | 2.5 |
| 19 | 3.5 | 2.5 |
| 20 | 3.5 | 2.5 |
| 21 | 4 | 2.5 |
| 22 | 5 | 2.5 |
| 23 | 5 | 2.5 |
| 24 | 5 | 2.5 |
| 25 | 5.5 | 2.5 |
| 26 | 6 | 2.5 |
| 27 | 3 | 3 |
| 28 | 4 | 3 |
| 29 | 4 | 3 |
| 30 | 4.76 | 3 |
| 31 | 5 | 3 |
| 32 | 6 | 3 |
| 33 | 6 | 3 |
| 34 | 7 | 3 |
| 35 | 7 | 4 |
| 36 | 7.1 | 4 |
| 37 | 7.2 | 4 |
| 38 | 8 | 4 |
| 39 | 8 | 4 |
| 40 | 9 | 4 |
| 41 | 9.53 | 4 |
| 42 | 10 | 4 |
| 43 | 10 | 4 |
| 44 | 10 | 5 |
| 45 | 11 | 5 |
| 46 | 12 | 5 |
| 47 | 13 | 5 |
| 48 | 14 | 5 |
| 49 | 15 | 5 |
| 50 | 16 | 5 |
| 51 | 10 | 6 |
| 52 | 11 | 6 |
| 53 | 12 | 6 |
| 54 | 30 | 6 |
| 55 | 12 | 6 |
| 56 | 15 | 6 |
| 57 | 18 | 6 |
| 58 | 18 | 6 |
| 59 | 21 | 6 |
| 60 | 22 | 6 |
| 61 | 23 | 6 |
| 62 | 14 | 8 |
| 63 | 36 | 8 |
| 64 | 20 | 8 |
| 65 | 21 | 8 |
| 66 | 22 | 8 |
| 67 | 22.23 | 8 |
| 68 | 23 | 8 |
| 69 | 23 | 8 |
| 70 | 24 | 8 |
| 71 | 25 | 8 |
| 72 | 27 | 8 |
| 73 | 28 | 8 |
| 74 | 28.58 | 8 |
| 75 | 24.61 | 9.53 |
| 76 | 25.4 | 9.53 |
| 77 | 21 | 10 |
| 78 | 22 | 10 |
| 79 | 24 | 10 |
| 80 | 32 | 10 |
| 81 | 35 | 10 |
| 82 | 38 | 12 |
| 83 | 40 | 12 |
| 84 | 50 | 14 |

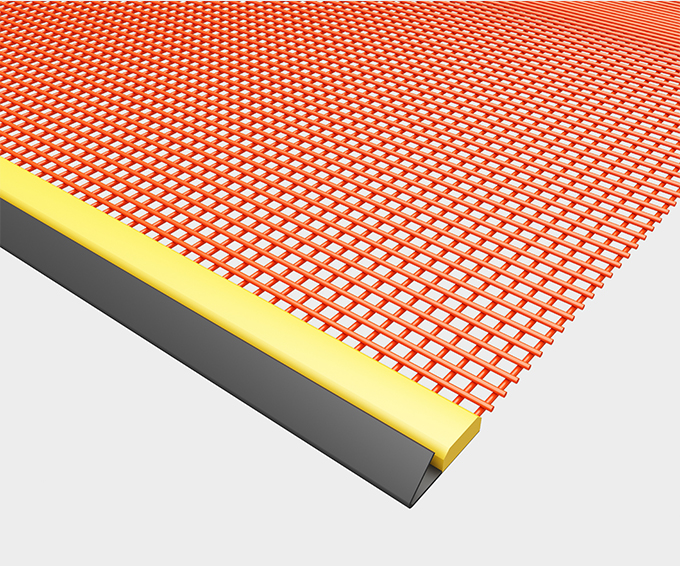

Polyurethane screen mesh is a type of material used in the construction of screening devices, such as vibrating screens, trommel screens, and dewatering screens. It is a synthetic material that is made from polyurethane, a polymer that is known for its toughness and elasticity. It is also resistant to chemicals and UV radiation, which helps to extend its lifespan and maintain its performance over time. In addition to its strength and durability, polyurethane screen mesh is also lightweight and flexible, which makes it easy to install and replace when necessary. Its ability to withstand high loads and vibrations, as well as its resistance to clogging and blinding, make it a popular choice for screening operations in industries such as mining, quarrying, and construction. Overall, polyurethane screen mesh is a reliable and cost-effective material that provides excellent screening performance in a range of applications.

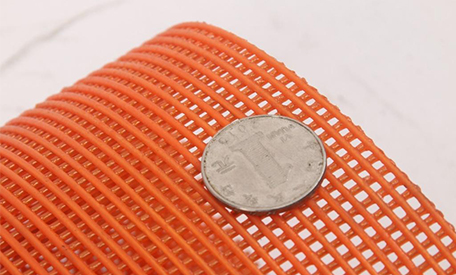

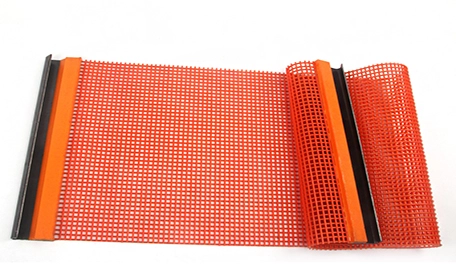

Strong corrosion resistance and excellent wear resistance
No modifications required to screen deck
Perfect squareness
Superior evenness
Significant noise reduction and high tensile strength
Strong corrosion resistance
low operating noise and high screening efficiency
Excellent wear resistance and high impact resistance
Wide range of application
PU mesh provides high strength, durability and also can withstand heavy loads.They are manufactured to any size and specification, therefore the polyurethane mesh can be freely combined with polyurethane vibrating screen and other mining equipment. It is fit for various areas, such as mines, refineries and quarries.
