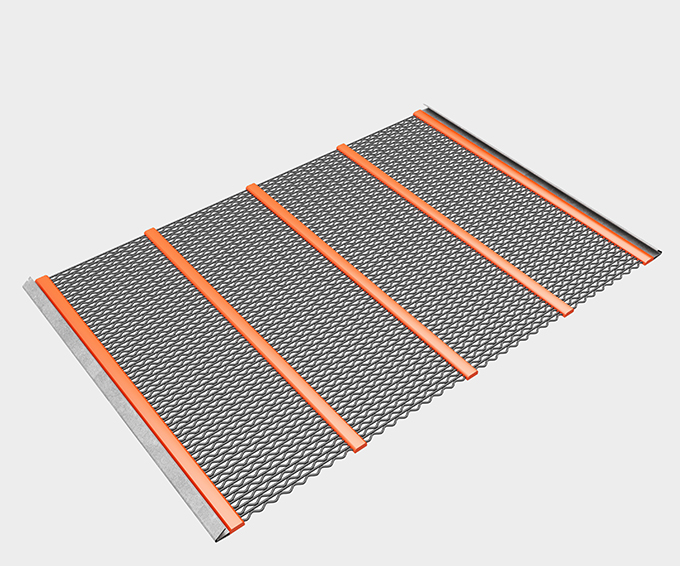

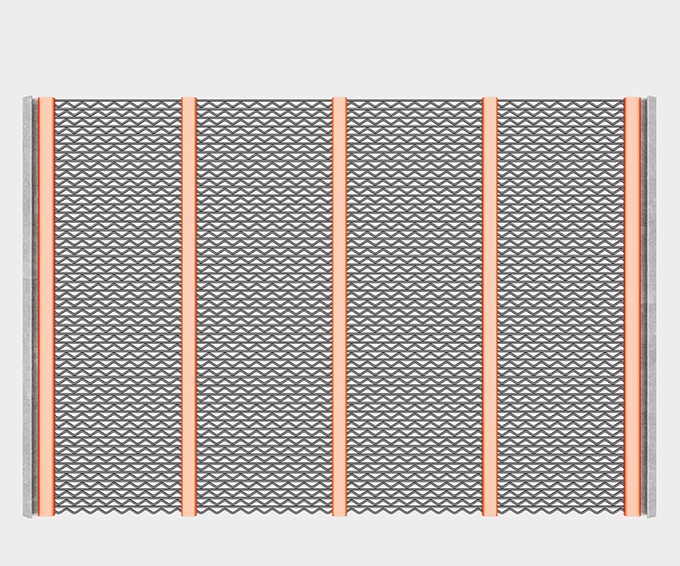

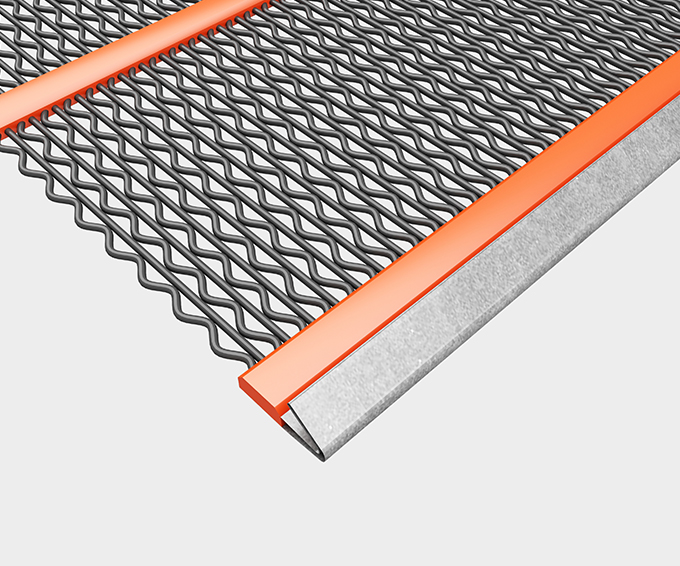

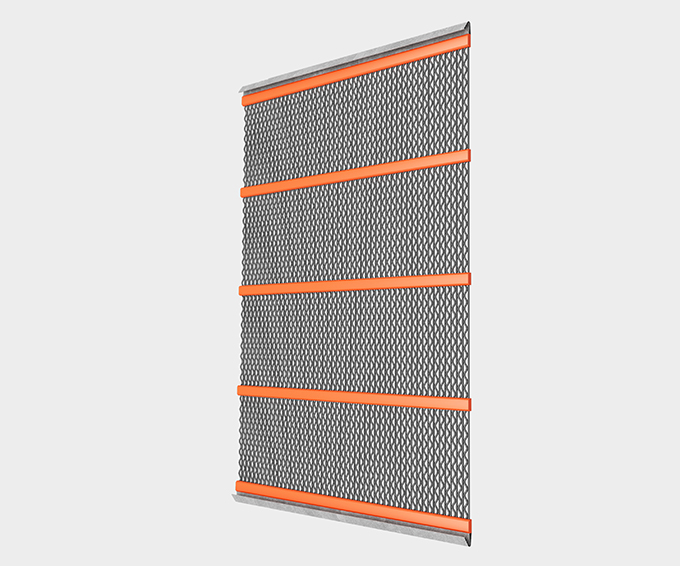

Triangle Opening Self-cleaning Screen, is like the diamond opening screen, with an extra straight wire in between every crimped wire which forms the triangle openings on the screen. It is designed to replace traditional fine mesh to better reduce blinding. The structure of triangle mesh wire fabric also reinforces the screen for high impact and heavy load screening.
| Item No. | Opening (mm) | Wire Size (mm) |
| 1 | 1.20 | 1.2 |
| 2 | 1.30 | 0.9 |
| 3 | 1.25 | 1.2 |
| 4 | 1.30 | 1.2 |
| 5 | 1.40 | 1.2 |
| 6 | 1.60 | 1.4 |
| 7 | 1.80 | 1.2 |
| 8 | 2.00 | 1.6 |
| 9 | 2.50 | 1.2 |
| 10 | 2.50 | 1.6 |
| 11 | 2.50 | 2.50 |
| 12 | 2.75 | 2 |
| 13 | 3.15 | 2.5 |
| 14 | 4.00 | 3.15 |
| 15 | 4.75 | 3.15 |
| 16 | 4.93 | 4 |
| 17 | 4.98 | 3.15 |
| 18 | 5.60 | 3.15 |
| 19 | 6.00 | 4 |
| 20 | 6.35 | 2.67 |
| 21 | 6.35 | 3.15 |
| 22 | 7.92 | 3.15 |
| 23 | 7.94 | 2.34 |
| 24 | 8.00 | 2 |
| 25 | 9.00 | 3.15 |
| 26 | 12.50 | 4 |
| 27 | 12.50 | 5 |
| 28 | 12.50 | 6.3 |
| 29 | 14.29 | 4 |
| 30 | 15.88 | 4 |
| 31 | 16.00 | 5 |
| 32 | 16.00 | 6.3 |
| 33 | 20.00 | 6.3 |

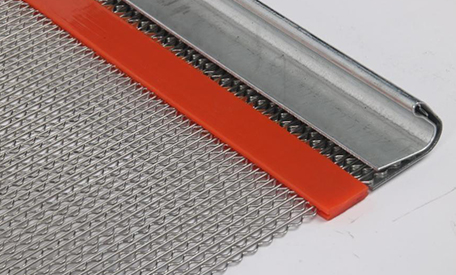

For high impact, heavy load screening
Could replace trtaditional fine mesh to betther reduce blinding
Last over three times longer than other standard screens
Precise sizing

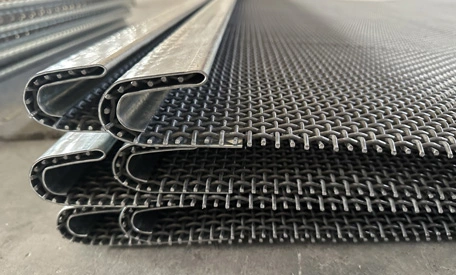

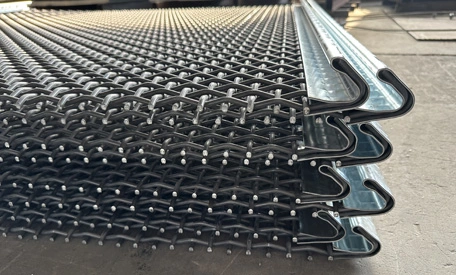

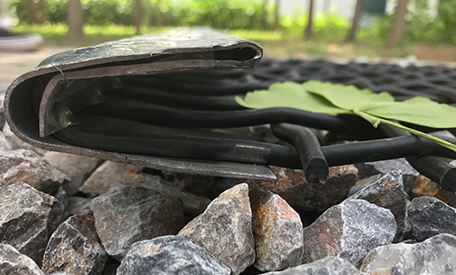

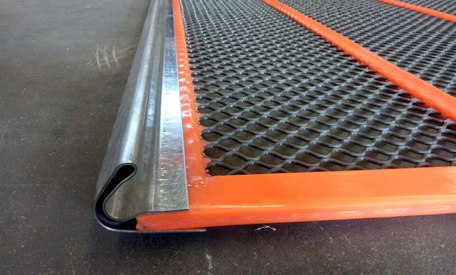

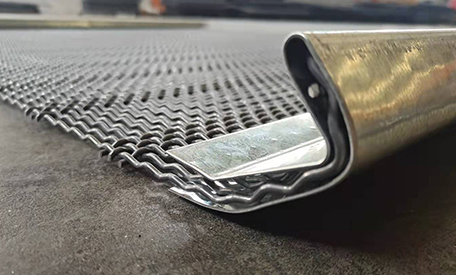

Hook standard based on ISO 14315
