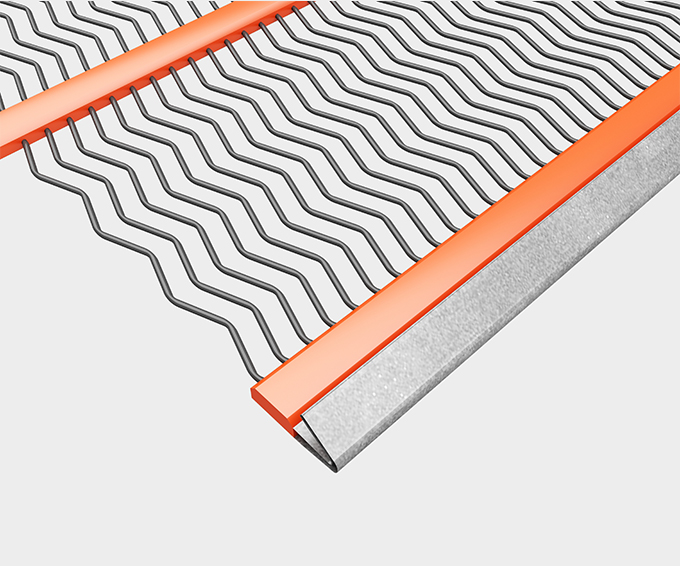

Wave Opening Self-cleaning Screen Mesh

Name: Wave Opening Screen
Brand: Anpeng Wire Mesh Filter Equipment Co., Ltd.

Like all the other self-cleaning screen mesh types, wave opening screen prevents clogging, blinding, and pegging. It provides maximum throughput in severe blinding conditions and offers some sizing control. Ideal for removing fines or for screening dry manufactured sand, agricultural lime, mulch, and wood chips. Could also increase production in screening wet or adhesive lightweight materials.

get a quote now PDF Download

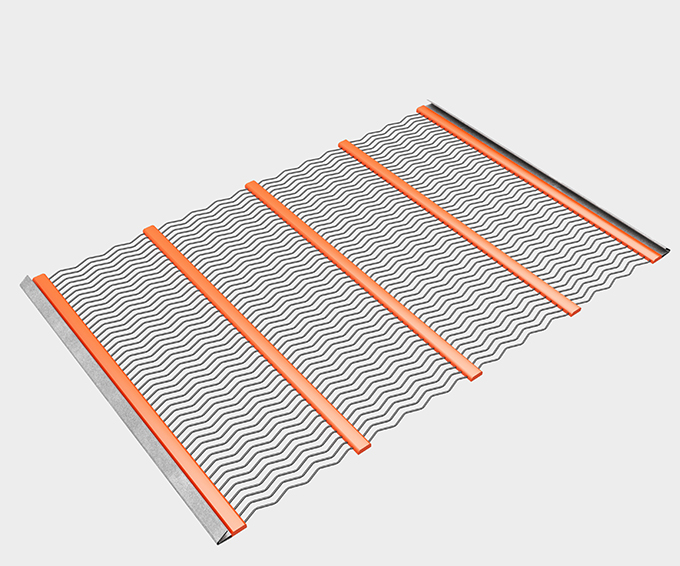

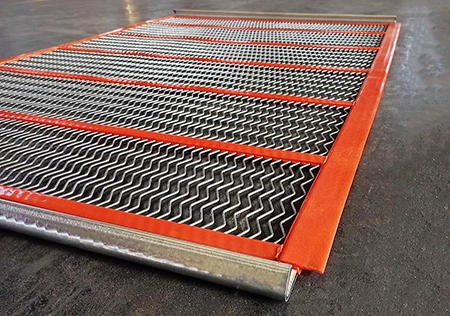

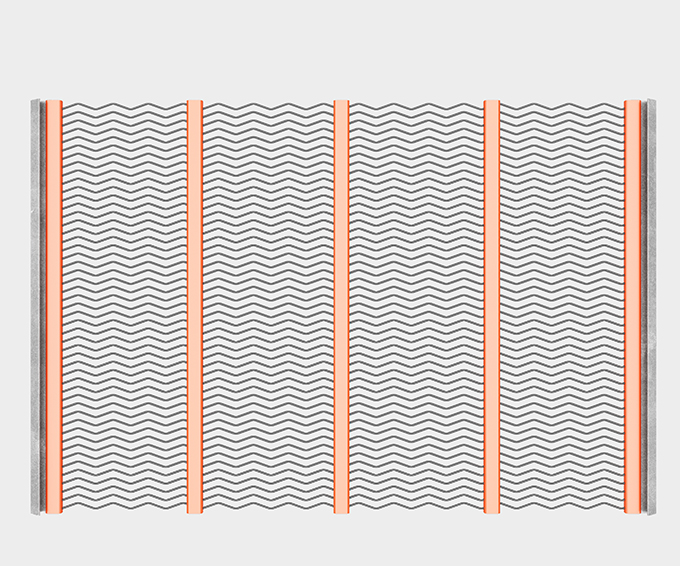

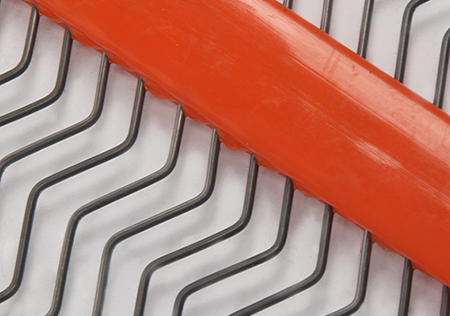

Wave Opening

Wave Opening

Wave Opening

Specification of Wave Opening Self Cleaning Screen Mesh

Item No.	Opening (mm)	Wire Size (mm)
1	3.18	1.37
2	4.76	1.83
3	3.15	2
4	4	2
5	6	2
6	6.35	2.03
7	7.94	2.34
8	11.2	3.55
9	17.5	5

Features of Anpeng Wave Opening Screen

Eliminate severe blinding and clogging situation

Increase open area than Diamond openings

Maximum throughout

Ideal for removing fines

Products

To order Self-cleaning Screens

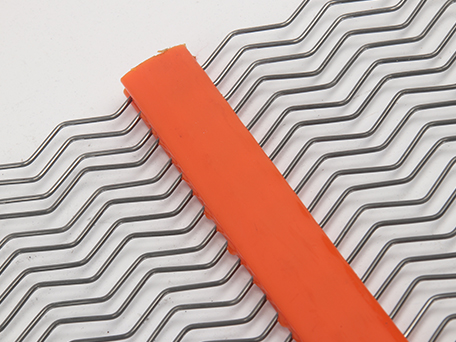

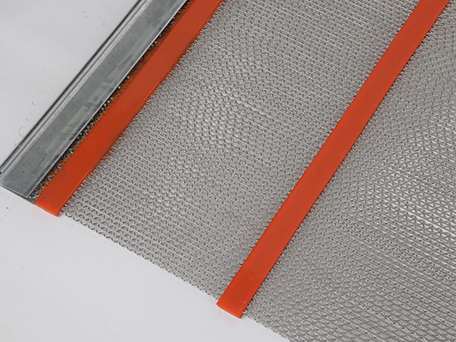

Opening

Diamond, Wave, Triangle, or Harp openings.

Dimensions

The (OHE) Overall Hooked Edge(width). State the length of the screen cloth and OVERLAP if required.

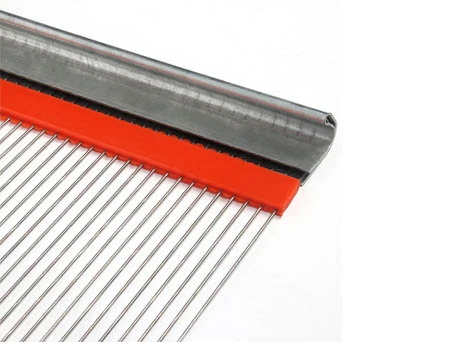

Aperture and Wire Diameter

Your required size of openings and the wire diameters.

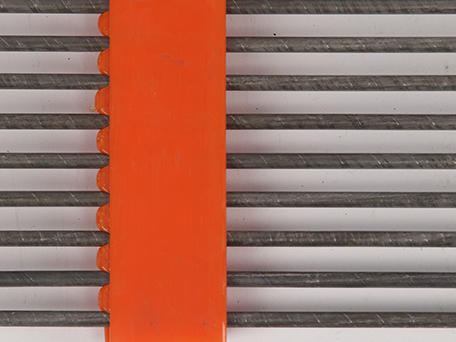

Crown Bar Gap

The distance between the polyurethane bars.

Hook Types or Flat Sheet

Choose your preferred hook types. Or if you prefer not to put hooks on the screens please notify. (If you were unsure of which to choose, or you do not have suitable specifications in mind, please feel free to consult our wire mesh expert, your inquires would be very much appreciated!)
