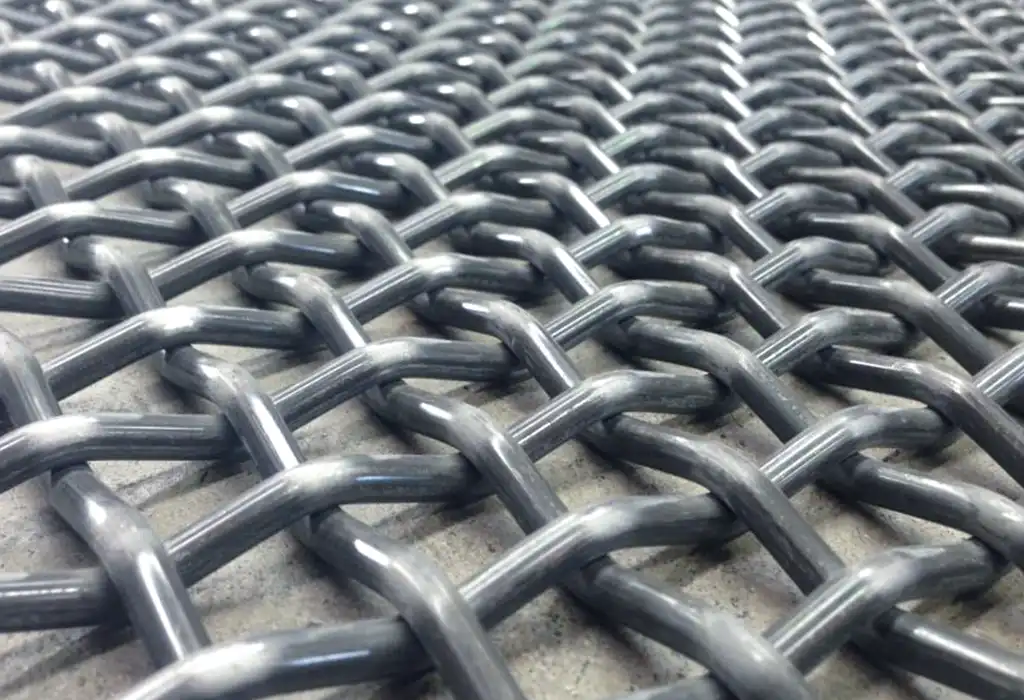

Diamond Woven Wire Mesh Manufacturer
Diamond woven wire mesh is a woven (crimped) wire mesh that forms diamond-shaped openings—not expanded metal. It’s chosen when you need a strong, stable mesh that holds its shape under vibration, impact, or continuous flow, while still keeping good open area for throughput.
At Anpeng, we manufacture diamond woven wire mesh in multiple materials and opening ranges, with custom panel sizes and edge options to match your equipment and site conditions.

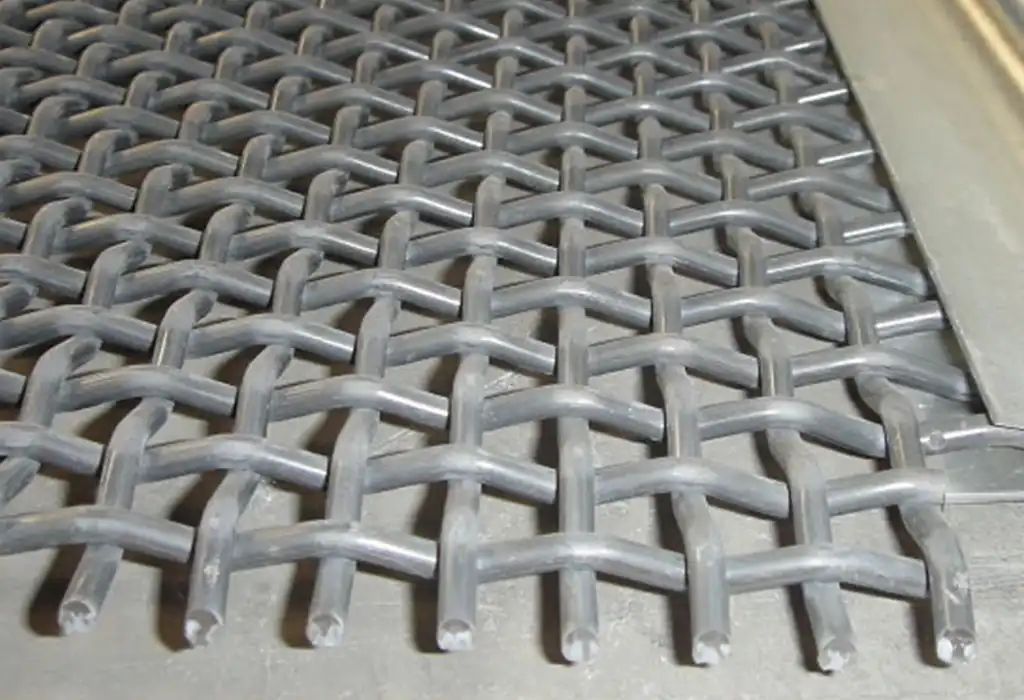

Where Diamond Woven Wire Mesh Works Best
Diamond woven wire mesh is a solid choice when you need a balance of strength and flow, especially where material rolls and spreads smoothly across the deck. It’s commonly used in aggregate and quarry screening, light-to-medium mining scalping and sizing, concrete/asphalt separation, recycling lines, and protective guards or covers. If your material is highly abrasive or impact-heavy, we can recommend a tougher weave, wire grade, or a self-cleaning / PU option for longer wear life.
Key Benefits of Diamond Woven Wire Mesh
The crimped weave helps lock wires in place so openings stay consistent.
Diamond patterns can offer solid resistance to deformation, especially with the right wire diameter and crimp style.
The diamond geometry can help certain particles move and distribute more evenly across the surface.
You can specify opening, wire diameter, panel size, and edge finishing to match your deck and clamping system.
Product Specifications
| Feature | Specifications |
|---|---|
| Product Name | Diamond Woven Wire Mesh (Woven/Crimped, Not Expanded Metal) |
| Material Types | High Carbon Steel, Stainless Steel (304, 316, 430), High Manganese Steel (65Mn) |
| Opening Type | Diamond Openings (Customizable) |
| Opening Size | Custom (based on target cut size and deck requirements) |
| Wire Diameter | Custom (selected for wear life and screening efficiency) |
| Panel / Sheet Size | Custom (made to match your screen deck) |
| Edge Finish Options | Raw Edge, Hooked Edge, Reinforced Edge, PU Edge (as required) |
| Max Width | Up to 2500 mm (customizable for oversized decks) |
| Typical Applications | Aggregate, Mining, Concrete, Recycling, Guards & Protection Panels |
| Customization | Opening size, wire diameter, panel dimensions, edge finish, material grade |
Why Choose Anpeng as Your Manufacturer
As a screening media manufacturer, Anpeng builds diamond woven wire mesh with stable openings, consistent quality, and custom-ready details to match your screen deck and operating conditions.
We control wire selection, crimping, weaving, and inspection to keep openings uniform and panels fit-ready.
Choose from high carbon steel and stainless steel grades to match abrasion, corrosion, and service life targets—so you get the right balance of throughput and durability.
Share your material type and cut size, and our team will recommend practical specs to improve wear life and keep your line running.
FAQs
Is diamond woven wire mesh the same as expanded metal?
No. Diamond woven wire mesh is woven/crimped wire, while expanded metal is slit and stretched sheet. They behave differently in wear, flexibility, and opening shape consistency.
Will painting or coating clog the openings?
It can, especially with smaller openings. If corrosion is a concern, stainless steel or galvanized options are often better than thick coatings.
Can diamond woven wire mesh be used on vibrating screens?
Yes—when the opening and wire diameter are chosen for vibration, load, and abrasion level. We can recommend a suitable build based on your material.
What edge finish should I choose?
That depends on your deck and clamping system. Hooked edges are common for tensioned decks, while reinforced or PU edges help reduce edge wear in some setups.
How do I measure a diamond opening?
Measure the clear opening the same way you measure screening media: the free space between wires along the opening direction relevant to your cut size. If you share a photo and target cut, we can confirm.
Do you offer custom sizes?
Yes. We manufacture to your deck dimensions and can match your existing panel layout.
