Double Wire Woven Screens
Double Wire Woven Screens are engineered for heavy-duty screening applications, offering superior durability, strength, and resistance to abrasion. Ideal for high-impact environments, these screens are perfect for the mining, aggregate, and recycling industries. Learn how our double wire mesh can enhance your screening performance with longer life and better efficiency.
What Are Double Wire Woven Screens?

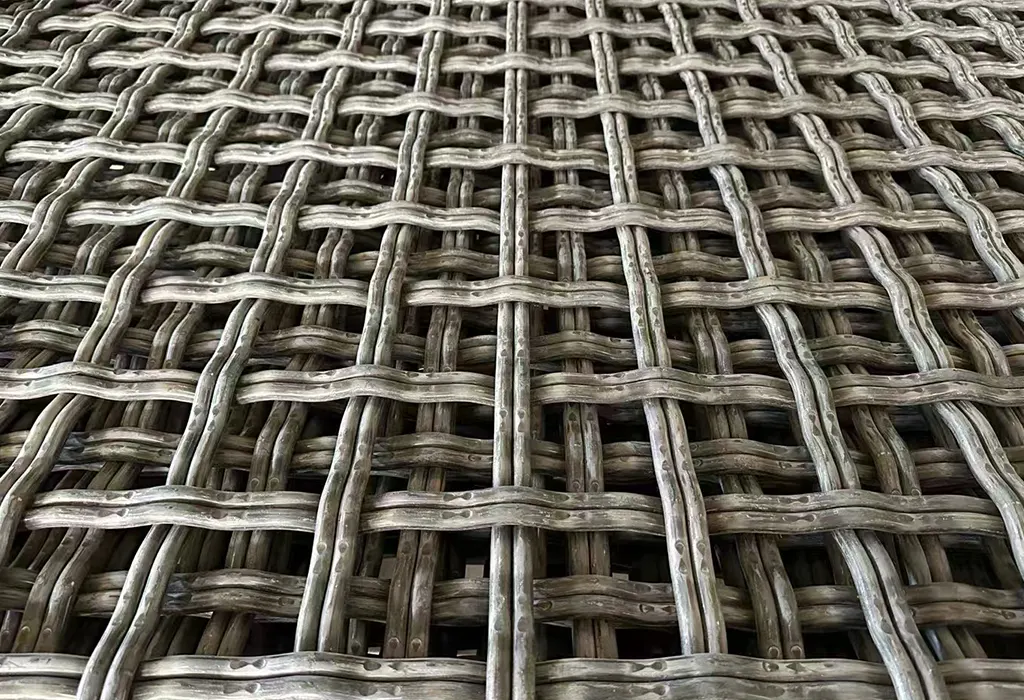

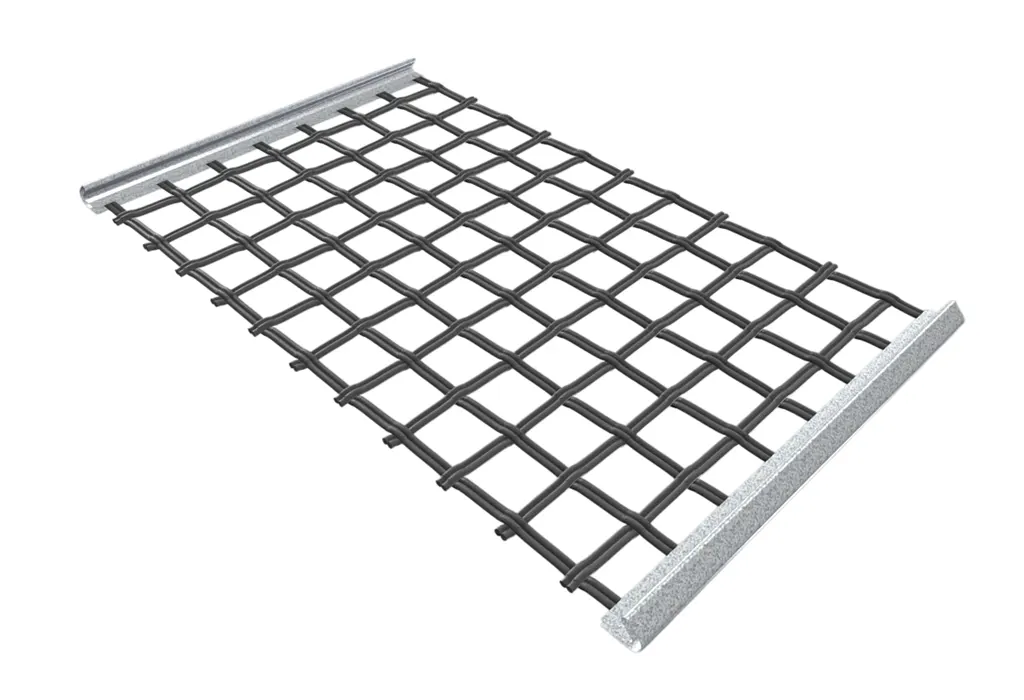

Double Wire Woven Screens are manufactured using two wires twisted together to form a robust mesh. This design provides exceptional tensile strength, making them ideal for handling tough materials and high-impact conditions often encountered in mining, aggregate, and recycling industries.
These screens are typically used in environments where standard woven wire mesh might wear out too quickly due to abrasive or heavy-duty applications. The double wire structure ensures that the mesh retains its shape and performance, even under high stress.
They are available in various materials, including carbon steel and stainless steel, offering corrosion resistance for applications in wet or corrosive environments. Double wire woven screens also provide high open area and can be customized to meet specific needs based on aperture size, wire diameter, and mesh configuration.
Applications
Mining: Efficient screening of ores and aggregates in high-impact and abrasive environments.
Construction & Aggregates: Ideal for separating coarse and fine materials in aggregate processing.
Recycling: Effective for sorting and processing various recyclables, including metals and plastics.
Coal & Cement: Separating fines and ensuring high-quality output in coal processing and cement production.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Double Wire Woven Screens |
| Manufacturer | Anpeng (Direct Manufacturer) |
| Screen Type | Double Wire Woven Screening Media |
| Material Options | 65Mn Manganese Steel Wire, Stainless Steel, Medium Carbon Steel, High Carbon Steel |
| Wire Diameter | 3.05mm to 19.05mm (customized based on application) |
| Opening Size (Aperture) | 25.4mm to 200mm (customizable) |
| Screen Size | Max. 3m width |
| Crimp Type | Pre-crimp, Intermediate Crimp, Lock Crimp (depending on aperture and load) |
| Open Area | Optimized to balance throughput and wear resistance |
| Panel Size | Custom size based on screen deck layout (full sheets or cut panels) |
| Edge Finish | Plain edges, Hooked edges, Reinforced edges (to match tensioning system) |
| Mounting / Tensioning | Clamp bar tensioning; side tension or end tension (based on requirement) |
| Recommended Deck Position | Top deck (scalping), Middle deck (sizing), Bottom deck (final screening) |
| Typical Applications | Quarry plants, mining aggregates, sand and gravel, recycled aggregates |
| Customization | Custom aperture, wire diameter, crimp type, panel size, edge finish, material grade |
| Quotation Info Needed | Deck position, aperture (mm), wire diameter (mm), panel size (L×W), edge type, quantity, material type, dry/wet condition |
| Packing | Bundles or export pallets with protective wrapping; labeled by specification & order ID |
Why Choose Anpeng as Your Double Wire Woven Screens Manufacturer
With over 20 years of experience, Anpeng provides durable, high-quality double wire woven screens tailored to meet the toughest industrial needs.
Our double wire woven screens are designed for maximum strength and durability, ideal for heavy-duty environments.
We provide tailored solutions to meet your unique application requirements with various wire diameters, aperture sizes, and materials.
With over 20 years of expertise, we are a trusted manufacturer of high-quality screening media in the mining, aggregate, and recycling industries.
FAQs
What are Double Wire Woven Screens used for?
Double Wire Woven Screens are primarily used in heavy-duty screening applications, particularly in mining, aggregates, and recycling industries where strength and durability are crucial.
What is the advantage of double wire over standard woven screens?
Double wire woven screens offer superior durability and tensile strength, which makes them more resistant to wear and ideal for handling tougher materials compared to standard woven wire mesh.
Can I customize the wire diameter or aperture size?
Yes, we offer customization options for both wire diameter and aperture size to meet the specific needs of your application, ensuring the most efficient screening performance.
