Hooked Screens
In vibrating screen operations, the hook is the only thing standing between seamless production and catastrophic screen failure. Poorly manufactured hooks lead to uneven tensioning, which causes the screen to whip, fatigue, and eventually snap.
At Anpeng, we specialize in high-tensile hooked screen mesh designed to provide a perfect fit for any shaker deck, ensuring consistent vibration across the entire screen surface and extending service life by up to 30%.
What Are Hooked Screens?

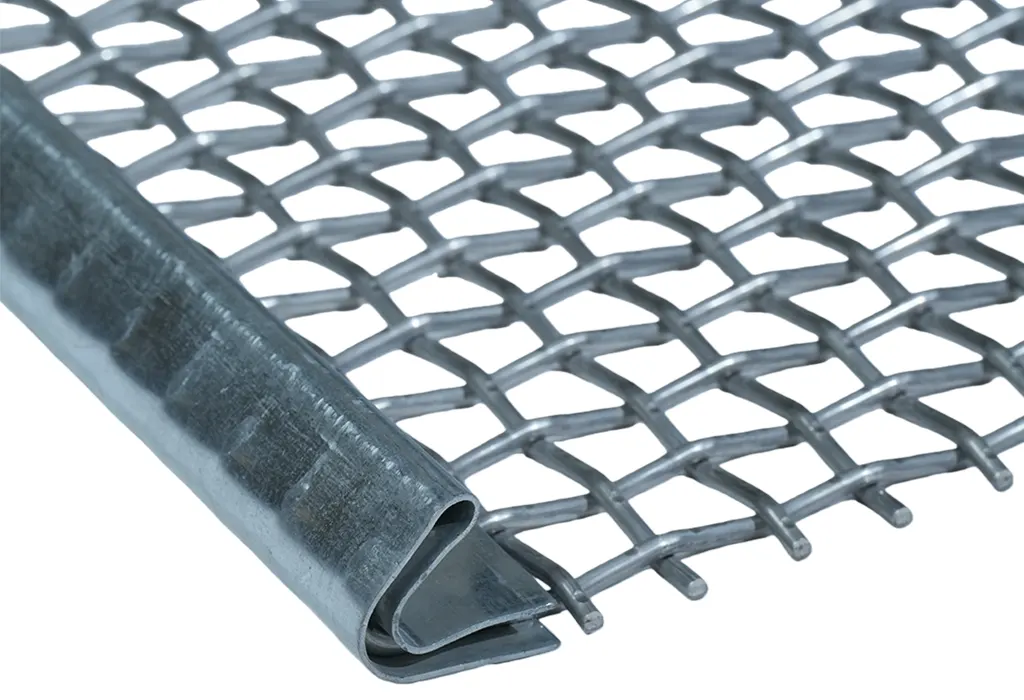

“Hooked” refers to the edge preparation of the screen cloth. The woven mesh is formed into hooks along two opposite sides (or as required), allowing it to be pulled tight and fixed to the tension rails or clamping system. Compared with plain-edge screen cloth, hooked screens are easier to install, maintain more stable tension during vibration, and reduce edge fraying in demanding applications.
How to Order: Ensuring a Perfect Fit
To provide the most accurate quote, please specify the following details when ordering:
Outside Hook Dimension (O.H.D): Measured from the outside of one hook to the outside of the opposite hook.
Hook Orientation: Parallel or Perpendicular to the flow of material.
Wire Material: High Carbon Steel, 65Mn, or Stainless Steel.
Aperture & Wire Diameter: Your required hole size and the thickness of the wire.
Product Specifications
| Feature | Specifications |
|---|---|
| Material Types | High Manganese Steel (65Mn), High Carbon Steel, Stainless Steel (304, 316, 430) |
| Aperture Size | 0.5 mm – 150 mm (Customizable) |
| Wire Diameter | 0.5 mm – 12.5 mm |
| Mesh Pattern | Square Mesh, Slotted Mesh (Rectangular), Self-Cleaning (W, D, O types) |
| Hook Types | C-Hook, U-Hook, V-Hook, Shrouded / Reinforced Hook |
| Hook Angle | 45°, 60°, 90°, or Custom Angles |
| Standard Edge | Metal-wrapped (Shrouded), Double-fold, or Polyurethane-reinforced |
| Max Width | Up to 2500 mm (customizable for oversized decks) |
| Standard Compliance | ISO 9044 / ISO 4783 / ASTM E2016 |

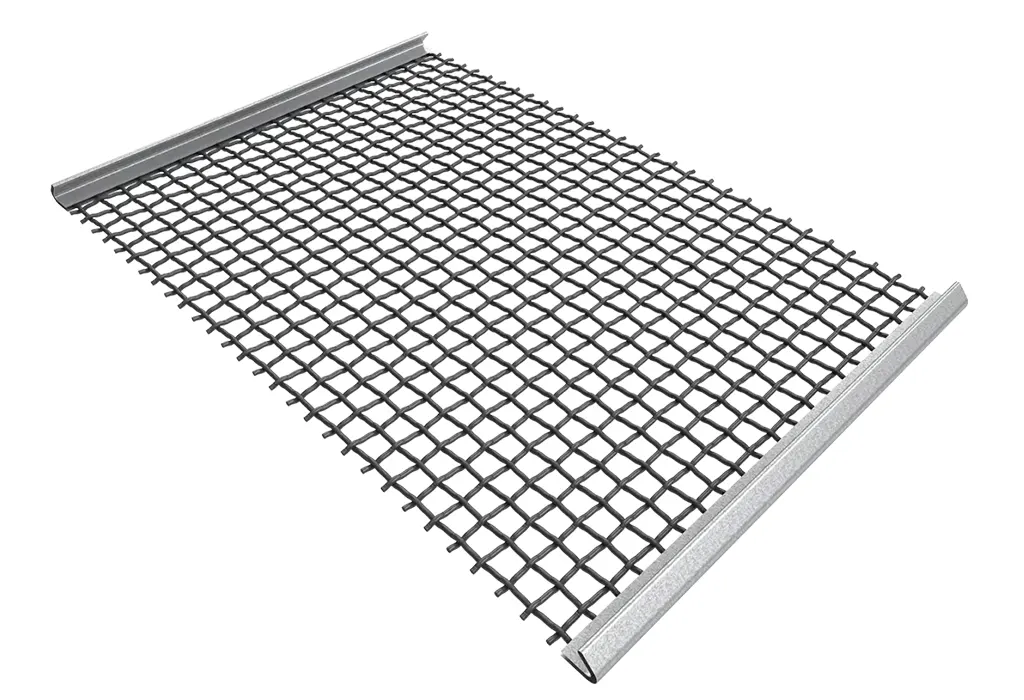

Why Choose Anpeng as Your Hooked Screens Manufacturer
Anpeng is a dedicated screening media manufacturer supplying hooked screens for demanding screening operations. We support custom openings, wire grades, hook styles, and sizes to ensure proper fit and reliable performance in the field.
Stable weaving and accurate edge forming for reliable tension and fit
Hook geometry, crimp selection, and wire grade matched to your deck and material
Dimensional checks and material traceability to improve service reliability
FAQs
Are hooked screens the same as vibrating screen mesh?
Hooked screens are a type of vibrating screen mesh. The difference is the hooked edge preparation, which allows the cloth to be tensioned and clamped securely on the screen deck.
What information do you need for a fast quote?
Please send the aperture (opening), wire diameter (if known), overall panel size, hook dimensions, screening condition (wet or dry), and your deck drawing or machine model.
Which wire material should I choose?
High carbon steel is a common cost-effective option. Oil-tempered wire offers better fatigue resistance under continuous vibration. Stainless steel is recommended for wet screening or corrosive environments.
Can you customize hook types and sizes?
Yes. We customize hook geometry and panel size to match your tension rails, clamping method, and deck layout.
