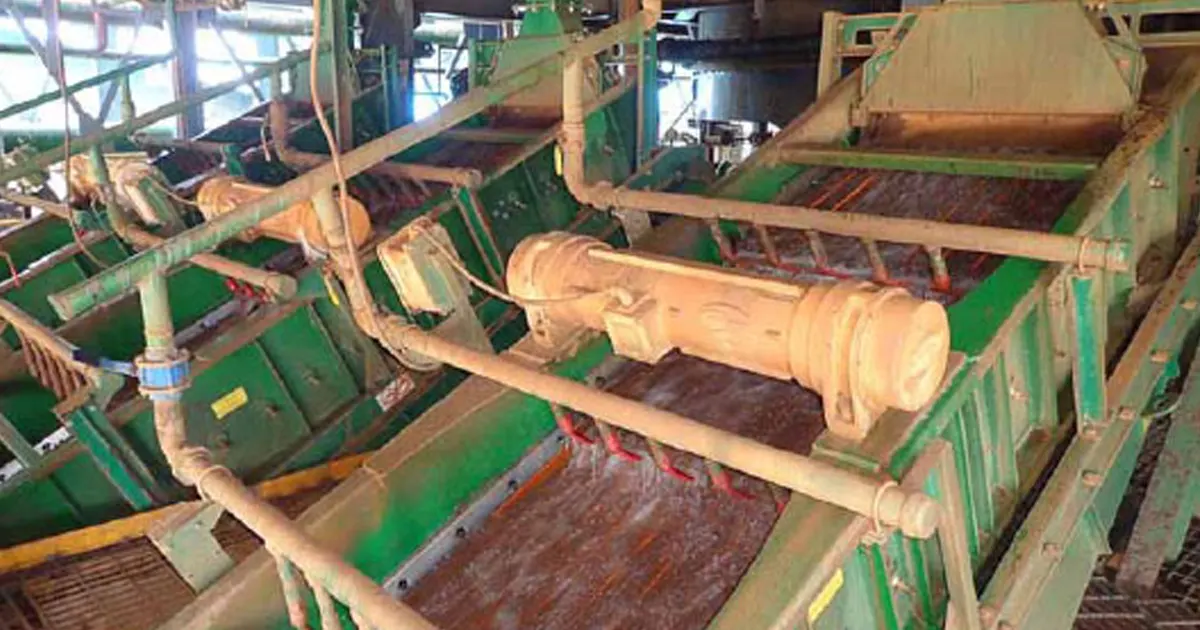

You want to learn how to measure screen mesh size for your work. Measuring mesh size the right way helps your vibrating screens work well. If you pick the wrong mesh size, you could lose important material or make production slower. Many businesses use mesh screens, like:
- Mineral processing

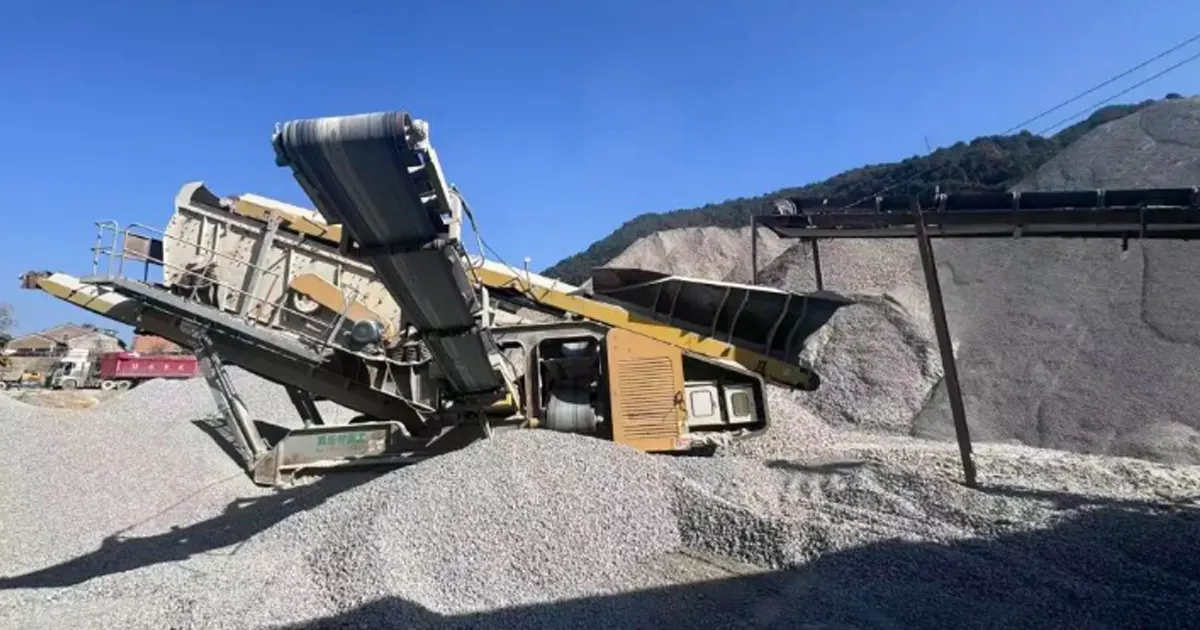

- Aggregate and construction
- Chemical and pharmaceutical
- Food and beverage processing
- Recycling
- Metal and mining
You need the correct mesh for your job, so let’s check how to measure it the right way.
Key Takeaways
- It is important to know mesh size. Mesh size shows how many holes are in one inch of the screen. This changes how materials are separated.
- Mesh count and opening size are not the same. Mesh count means the number of holes. Opening size is the space between the wires.
- Getting mesh size right stops expensive mistakes. The wrong mesh can make you lose material and spend more money.
- Use the correct tools to measure. Rulers and calipers help you check mesh count and wire thickness.
- Always check your measurements again. Measure in different places to find any problems or worn spots.
- Learn how to figure out opening size. The formula is: Opening Size = (1 inch / mesh count) – wire diameter.
- Watch out for unit changes. Mesh sizes may be in inches, millimeters, or microns. Use the right math to change between them.
- Ask manufacturers for details. They can give you good information and help you check your measurements.
Mesh Size Basics
What Is Mesh Size
You might wonder what mesh size means when you look at a screen panel. Mesh size tells you how many openings you have in one inch of the screen. For example, if you see a 4-mesh screen, you get four openings in every inch. If you use a 100-mesh screen, you get 100 tiny openings in the same space. When the mesh size number goes up, the openings get smaller. That means only smaller pieces can pass through. Mesh size is important because it controls what stays on top and what falls through your screen.
Mesh Count vs. Opening Size
You will see two terms when you measure mesh: mesh count and opening size. They sound similar, but they are not the same. Let’s break it down:
| Term | Definition |
|---|---|
| Mesh Count | The number of openings per linear inch of wire mesh, counted in both directions. |
| Opening Size | The clear opening between wires, not affected by wire thickness. |
- Mesh count shows how many openings you have in one inch. More openings mean more wires and smaller spaces.
- Opening size tells you how big the space is between the wires. It does not count the wire thickness.
Sometimes, you need to measure both mesh count and opening size to get an accurate mesh size. You can use a ruler or caliper to count the openings and measure the space.
Why Accurate Mesh Size Matters
You need an accurate mesh size for your screening job. If you use the wrong mesh, you can run into big problems.
Choosing the wrong screen media leads to the improper separation of materials, which cross-contaminates various sizes of material into one pile. Using the wrong screen media can lead to bigger and more costly mistakes, including frequent screen replacements, material fragmentation and inconsistent material quality.
You want your mesh to sort materials the right way. If you pick the wrong mesh size, you might lose good material or mix up sizes. You could also spend more money fixing screens or dealing with poor quality. Accurate mesh size helps you get the best results and keeps your operation running smoothly.
When you measure mesh size, always double-check your work. Use the right tools and follow the steps for accurate mesh size. This way, you know your mesh will do its job every time.
Tools for Mesh Size Measurements
You want your mesh size measurements to be spot-on. The right tools make this job much easier. Let’s look at the most common tools you’ll use to measure mesh on vibrating screens.
Calipers and Rulers
You probably have a ruler or caliper in your toolbox. These tools help you measure mesh quickly and accurately. Lay your wire screen flat on a table. Use a ruler to count how many mesh openings fit in one inch. This gives you the mesh count. Calipers work well for measuring the wire diameter. You just close the jaws around one wire and read the number.
- Rulers help you count mesh openings per inch.
- Calipers measure the thickness of each wire.
- Both tools are easy to use and give you fast results.
Tip: Always double-check your mesh count by measuring in two spots. This helps you catch any mistakes or worn-out areas.
Mesh Gauges and Charts
Mesh gauges and charts make your life easier when you need to convert mesh numbers to microns or millimeters. Engineers use these tools to get quick answers without flipping through long tables. Mesh gauges often have slots or holes that match common mesh sizes. You just line up your mesh with the gauge to see which one fits.
- Mesh gauges give you a fast way to check mesh size.
- Charts help you convert mesh numbers to opening sizes.
- Some digital tools use magnetic induction to measure mesh thickness on fabric and stencils.
Here’s a simple table to show what you might see on a mesh chart:
| Mesh Number | Opening Size (mm) | Opening Size (micron) |
|---|---|---|
| 10 | 2.00 | 2000 |
| 20 | 0.85 | 850 |
| 50 | 0.30 | 300 |
You can see how mesh numbers change the opening size. Mesh gauges and charts save you time and help you avoid mistakes.
Manufacturer Specs
You can always check the manufacturer specs for your mesh. These specs tell you the mesh count, wire diameter, and opening size. Manufacturers use precise tools to measure mesh and make sure every batch meets strict standards. They test mesh for size, pattern, and even durability.
- Manufacturer specs confirm your mesh matches industry standards.
- Specs help you compare different mesh panels before you buy.
- If you have questions, you can ask the manufacturer for details.
Note: Specs are reliable, but it’s smart to measure your mesh yourself. Sometimes mesh can stretch, wear out, or get damaged during use.
When you use the right tools, you get accurate mesh size measurements every time. This keeps your screening process smooth and your results consistent.
How to Measure Screen Mesh Size
You want to know how to measure screen mesh size the right way. This section gives you practical steps for counting openings, measuring wire diameter, and using formulas to calculate mesh size. You’ll see how each step helps you get accurate results for your vibrating screens.
Counting Openings per Inch
You need to start with the basics. Counting the number of openings per inch is the first step in how to measure screen mesh size. This tells you the mesh count, which is key for mesh size calculation.
Step-by-Step Counting
Follow these steps to count the openings:
- Place your mesh flat on a table. Pick a spot that looks clean and undamaged.
- Use a ruler to mark a 1-inch line across the mesh.
- Count the number of openings along that line. Make sure you include both the wires and the openings in your count.
- Write down the total number of openings. This number is your mesh count.
You might see mesh described as “holes per square inch.” This means the number of openings in one inch, counted in both directions.
Double-Checking Results
You want your results to be accurate. Here’s how you double-check:
- Count the number of openings in two or three different spots on the mesh.
- Compare your results. If the numbers match, you did it right.
- If you see different numbers, check for worn or damaged areas. Mesh can stretch or break over time.
Tip: Always use a clean ruler and good lighting. This helps you see the openings clearly and avoid mistakes.
Measuring Wire Diameter
Wire diameter affects the size of the openings and the strength of your mesh. You need to measure it for a complete mesh size calculation.
Using Calipers
Calipers and micrometers give you the most accurate wire diameter measurements. Here’s a table to show the best methods:
| Measurement Procedure | Description |
|---|---|
| Average Diameter Measurement | Average the diameters of at least five warp and five filler wires. |
| Use of Precision Tools | Use calipers or micrometers for precise wire diameter measurement. |
You can also use these tools:
- Micrometer: Gives high accuracy for wire diameter.
- Laser micrometers: Fast and accurate during mesh production.
- Optical projection: Good for measuring wire diameter in mesh cloth.
- Scanning method: Another option for wire diameter measurement.
To measure wire diameter:
- Loosen a wire from the mesh and use a micrometer screw to measure it.
- If you can’t remove a wire, measure it in the mesh with calipers or a micrometer.
- Use optical projection or scanning if you have the right equipment.
Accounting for Wear
Mesh wears out over time. Wires can get thinner or break. Always check for wear before you measure. If you see damage, measure in a spot that looks new. You can also average the wire diameter from several wires to get a better result.
Note: Thicker wires make your mesh stronger but reduce the size of the openings. Thin wires give you bigger openings but may not last as long.
Calculate Mesh Size Openings
Now you need to calculate mesh size. This means figuring out the size of the openings between the wires. You use the mesh count and wire diameter for mesh size calculation.
Opening Size Formula
The formula for calculating the size of the openings is simple. You subtract the wire diameter from the space taken by each opening. Here’s how you do it:
Opening Size = (1 inch / mesh count) - wire diameter
This formula helps you calculate mesh size for any screen. The wire diameter affects the size of the openings. Thicker wires make the openings smaller. Thinner wires make them bigger.
You can also calculate the percent open area with this formula:Percent Open Area = [1 - (mesh count x wire diameter)] x 100
This shows how much open space your mesh has for material to pass through.Example Calculation
Let’s do a quick example. You have a mesh with a mesh count of 10 and a wire diameter of 0.08 inches.
- Divide 1 inch by the mesh count: 1 / 10 = 0.1 inch.
- Subtract the wire diameter: 0.1 – 0.08 = 0.02 inch.
- The opening size is 0.02 inch.
If you want to calculate mesh size for percent open area:
- Multiply mesh count by wire diameter: 10 x 0.08 = 0.8.
- Subtract from 1: 1 – 0.8 = 0.2.
- Multiply by 100: 0.2 x 100 = 20%.
Your mesh has 20% open area. This means 20% of the mesh is open for material to pass through.
Callout: Always use the right tools and double-check your measurements. Accurate mesh size calculation keeps your screens working well and your materials sorted the way you want.
You now know how to measure screen mesh size, count the number of openings, measure wire diameter, and calculate mesh size openings. These steps help you get the best results for your vibrating screens.
Mesh Size Unit Conversion
Inches, Millimeters, Microns
You might see mesh sizes listed in different units. Sometimes you get mesh size in millimeters, sometimes in microns, and other times you see mesh size in inches. This can get confusing if you need to compare screens or order new panels. You want to know exactly what you’re getting.
Here’s a handy table that shows how mesh numbers match up with common units. You can see how the same mesh can look very different depending on the unit.
| US Mesh | Microns | Inches | Millimeters |
|---|---|---|---|
| 35 | 500 | 0.0197 | 0.5 |
| 40 | 400 | 0.0165 | 0.4 |
| 50 | 297 | 0.0117 | 0.297 |
| 60 | 250 | 0.0098 | 0.25 |
| 80 | 177 | 0.007 | 0.177 |
| 100 | 149 | 0.0059 | 0.149 |
| 200 | 74 | 0.0029 | 0.074 |
| 400 | 37 | 0.0015 | 0.037 |
| 635 | 20 | 0.0008 | 0.020 |
You can use this table to quickly check mesh size in millimeters or mesh size in inches.
Conversion Formulas
You may need to convert mesh size in millimeters to microns or mesh size in inches. The formulas are simple, and you can use them any time you need to switch between units.
- 1 inch = 25.4 millimeters
- 1 millimeter = 1000 microns
- 1 inch = 25,400 microns
If you want to convert mesh size in inches to millimeters, just multiply by 25.4. To go from millimeters to microns, multiply by 1000. Here’s a table with some common mesh sizes and their conversions:
| Mesh Size | Microns | Mm | Inches |
|---|---|---|---|
| 4 | 4760 | 4.76 | 0.1875 |
| 10 | 1680 | 1.68 | 0.0937 |
| 20 | 840 | 0.84 | 0.0331 |
| 60 | 250 | 0.25 | 0.0098 |
| 100 | 149 | 0.149 | 0.0049 |
| 200 | 74 | 0.074 | 0.0029 |
| 325 | 44 | 0.044 | 0.0017 |
Tip: Always double-check your conversions before you order new mesh. A small mistake can lead to big problems in your screening process.
International Standards
Mesh size measurements follow different standards around the world. You might see one standard in North America and another in Europe or Asia. Here are the most common ones:
| Standard Name | Description |
|---|---|
| US Standard Sieve Series (ASTM E11) | Used in North America for mesh and sieve sizes. |
| Tyler Mesh System | Popular in mining, uses a special progression. |
| ISO 3310 | Metric-based, used internationally. |
You want to match your mesh to the right standard for your industry. If you work with partners in other countries, always check which standard they use. This helps you avoid confusion and keeps your screening operation running smoothly.
Note: When you order mesh, tell your supplier the mesh size in millimeters, mesh size in inches, and the standard you need. This makes sure you get the right product every time.
Factors Affecting Accurate Mesh Size
Wire Thickness Variations
Wire thickness can change the way you measure mesh size. If you look at two screens with the same mesh count, but one has thicker wires, you will see smaller openings. Thicker wires make the mesh stronger, but they also reduce the space for material to pass through. When you measure mesh, always check the wire diameter. You might notice that older screens have wires that look thinner because of wear. If you use a caliper, you can get a more accurate reading. Try measuring several wires and take the average. This helps you avoid mistakes from worn or damaged spots.
Tip: Always measure wire thickness in different areas of the mesh. This helps you spot any changes caused by use or damage.
Mesh Material and Condition
The material and condition of your mesh play a big role in measurement accuracy. You might use stainless steel, carbon steel, or even synthetic materials. Each type reacts differently to wear, stretching, and corrosion. If your mesh has rust or bends, you will get wrong measurements. Clean and inspect your mesh before you start measuring. Look for broken wires, holes, or spots where the mesh has stretched. Damaged mesh can give you false readings and affect your screening results.
Here’s a quick checklist to help you:
- Check for rust or corrosion.
- Look for broken or bent wires.
- Make sure the mesh is clean and free of debris.
If you see any problems, replace the mesh or measure in a spot that looks new.
Environmental Factors
The environment around your mesh can change its size and shape. High temperatures can make metal expand. Humidity can cause rust or make some materials swell. If you work in a wet or dusty area, your mesh might clog or wear out faster. Always measure mesh in the same conditions where you use it. If you move your screen from a hot area to a cold one, wait for it to adjust before you measure. This helps you get the most accurate results.
Note: Store your mesh panels in a dry, cool place. This keeps them in good shape and makes your measurements more reliable.
You can avoid many problems by checking wire thickness, mesh material, and environmental factors before you measure. These steps help you keep your screening process accurate and efficient.
Tips for Accurate Mesh Size Measurements
Best Practices
You want your mesh measurements to be correct every time. Begin with a clean workspace and bright lights. Always use the right tools, like calipers and rulers. Check your equipment before you start measuring. Quality control is important in factories and plants. If you follow best practices, you find problems early. This keeps your screens working well.
Here’s a table with some best practices you should follow:
| Best Practice | Description |
|---|---|
| Adherence to ISO 4783 | Use international standards for consistent mesh performance. |
| Rigorous Quality Control Measures | Check mesh at every step to avoid surprises later. |
| Strict Material Checks | Pick high-grade metals to prevent mesh failure. |
| Consistent Monitoring of Wire Thickness | Measure wire thickness often to keep mesh strong. |
| Accurate Mesh Spacing | Make sure openings match your needs for sorting materials. |
| Multi-Point Inspections and Tests | Inspect mesh in several places to catch defects early. |
| Regular Visual Inspections | Look for damage or wear before final use. |
| Precise Wire Diameter Measurements | Use calipers for exact wire thickness. |
| Tension Monitoring | Check mesh tension to keep it flat and strong. |
| Automated Weaving Checks | Use machines to check mesh alignment. |
| Testing for Strength and Alignment | Make sure mesh can handle your job. |
You can also inspect mesh visually before you measure. Measure wire diameter in different spots. Watch mesh tension during production. Use machines to check weaving. Test mesh for strength and alignment.
Tip: Write down your measurements and check them twice. This helps you find mistakes and keeps your records clear.
Common Mistakes to Avoid
Measuring mesh may seem easy, but small errors cause big problems. Here are mistakes you should watch out for:
- Using worn or dirty tools. Clean calipers and rulers before you start.
- Measuring mesh in damaged or stretched spots. Pick areas that look new.
- Forgetting to check wire diameter. Wire thickness changes opening size.
- Ignoring mesh tension. Loose mesh gives wrong measurements.
- Skipping visual checks. Rust or broken wires mess up results.
- Not following standards. Use the right system for your industry.
Note: If you rush or skip steps, you might get the wrong mesh size. Take your time and follow each step carefully.
When to Consult the Manufacturer
Sometimes you need expert help. If you feel unsure about your mesh specs or have problems, ask the manufacturer. They know the details and can confirm your specifications. You should talk to the manufacturer when:
- You need mesh for a new job.
- Your measurements do not match the specs.
- You see strange wear or damage.
- You want to check standards or certifications.
Manufacturers like ANPENG can give advice on mesh types, performance, and cost. Early help makes sure you get the right mesh and avoid mistakes.
Callout: If you ever feel stuck or need to check your mesh specs, ask ANPENG for help. Their team can guide you and make sure your mesh fits your needs.
Mesh Size Measurement Examples

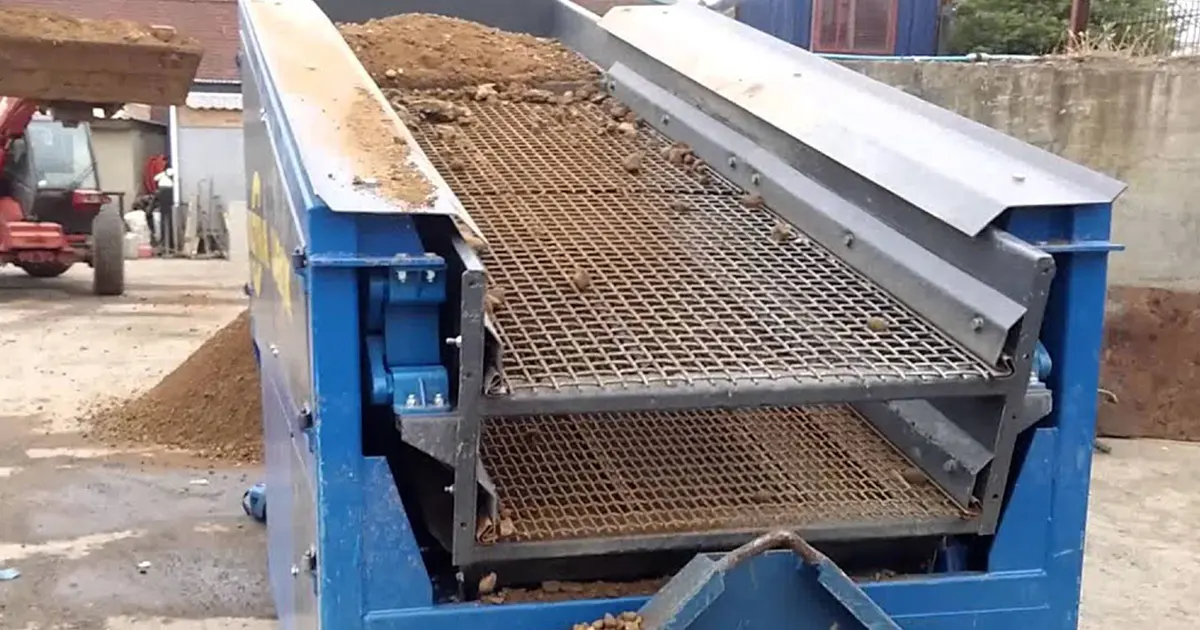

Square Mesh Example
Square mesh is common in mining jobs. It is easy to measure. You count how many openings fit in one inch. Each opening is a square shape. This helps you know what size material can go through.
- Mesh size tells you the number of openings in one inch.
- For example, a 60 mesh screen has 60 holes in every inch. Smaller pieces will fall through these holes.
- Some mesh sizes used in mining are:
- 10 Mesh: 2000 micronm (2 mm)
- 40 Mesh: 425 micronm
- 60 Mesh: 250 micronm
- 100 Mesh: 150 micronm
- 200 Mesh: 75 micronm
- 325 Mesh: 44 micronm
You can use a stack of screens with smaller mesh on top. This helps you sort minerals by size. Start with the biggest mesh and move to the smallest. You get good results by checking each layer.
Tip: Count the openings in a few places. This helps you find any stretched or broken spots.
Slotted Mesh Example
Slotted mesh looks different from square mesh. The holes are long and shaped like rectangles. You need to measure both the width and length of each slot. Slotted mesh is good for big jobs because it lets more material pass.
Here’s a table to show the differences:
| Feature | Square Mesh | Slotted Mesh |
|---|---|---|
| Opening Shape | Square openings | Long rectangle openings |
| Flow Rate | Even flow because all holes are the same | More flow because there is more open space |
| Application Suitability | Best for sorting small pieces | Great for jobs with lots of material |
| Risk of Pegging and Blinding | Higher risk because holes are the same | Less risk because slots are longer |
| Material Durability | Good strength with normal wire | Stronger with thicker wires |
| Screening Capacity | Not as much as slotted mesh | Up to 25% more open area for more material |
Slotted mesh gives you more open space. This means you can move more material faster. The slots also help stop clogging.
Note: When you measure slotted mesh, check both the width and length. This helps you know how much material can pass through.
Troubleshooting Inconsistent Results
Sometimes your measurements do not match. You might get different numbers in different places. This can happen for a few reasons. Try these steps:
- Use the X-Y Hole Compensation in your slicer software. This can fix small mistakes.
- Save your file with a new name and use Fault Detection tools. You can check for problems without changing your main file.
You want your mesh measurements to be right. If you see problems, check your tools and how you measure. Try measuring in more than one spot. Clean your mesh before you start. If you still have trouble, ask your manufacturer for help.
Callout: Getting the same measurements every time keeps your work smooth. Do not ignore small mistakes—they can cause bigger problems later.
Conclusion
You can measure mesh size accurately by following these steps:
- Check the pressure your job needs.
- Know the type and size of particles you want to filter.
- Pick the right mesh weave and material.
- Use good tools and measure in clean spots.
Using proper methods and tools helps you get reliable results every time. As a manufacturer of industrial screen mesh, ANPENG can confirm your specs. Share your opening size, wire diameter, material, panel size, application, moisture, and screen model for expert support. Reach out to ANPENG for custom solutions and quality checks that keep your screens working longer.
FAQ
How do you know which mesh size to choose?
You look at the size of the material you want to separate. Pick a mesh that lets the right particles pass through. If you feel unsure, ask your supplier for advice.
Can you measure mesh size without special tools?
Yes! You can use a ruler to count openings per inch. For wire diameter, calipers work best, but you can use a micrometer if you have one.
What does “mesh count” mean?
Mesh count means the number of openings in one inch of screen. Higher mesh count means smaller openings. Lower mesh count means bigger openings.
Why does wire diameter matter?
Wire diameter changes the size of the openings. Thicker wires make smaller openings. Thin wires give you bigger openings but may wear out faster.
How often should you check mesh size?
You should check mesh size every time you install a new screen or notice changes in performance. Regular checks help you catch problems early.
What if your measurements don’t match the manufacturer’s specs?
If your measurements look different, check for wear or damage. Measure in several spots. If you still see problems, contact the manufacturer for help.
Can you convert mesh size to microns or millimeters?
Absolutely! Use these formulas:
- 1 millimeter = 1000 microns
- 1 inch = 25.4 millimeters
You can also use mesh conversion charts for quick answers.
