How to Order
Wire Type:
- High Tensile
- Stainless Steel
Screen Size:
- OCW
- ICW

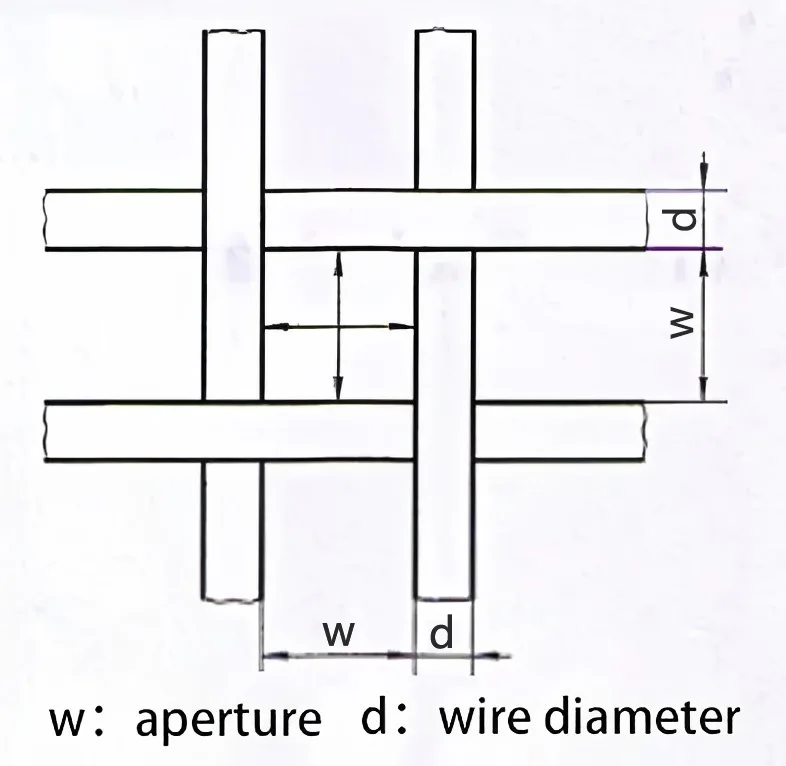

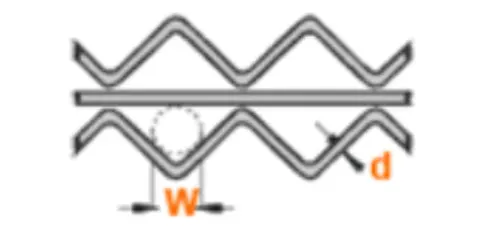

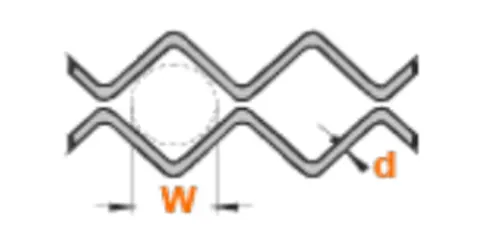

- Aperture
- Wire Diameter
- Flat-Trimmed
- Flat-Untrimmed

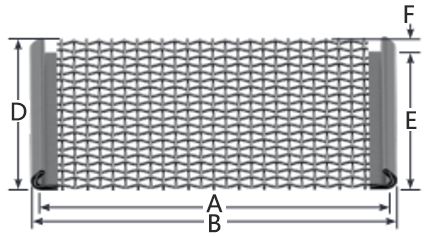

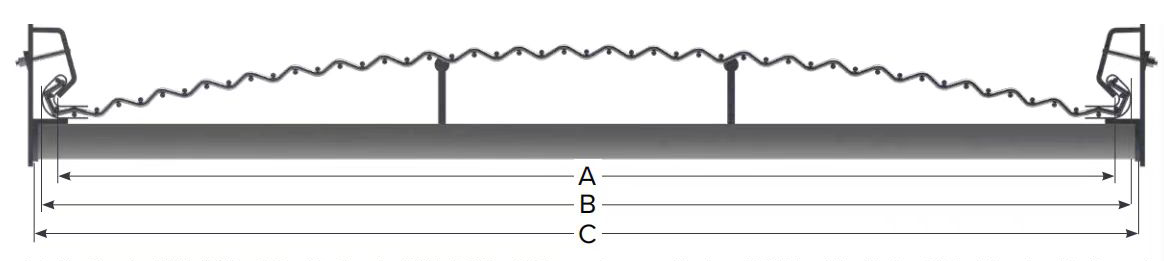

- A. Inside Clamping Width (ICW)

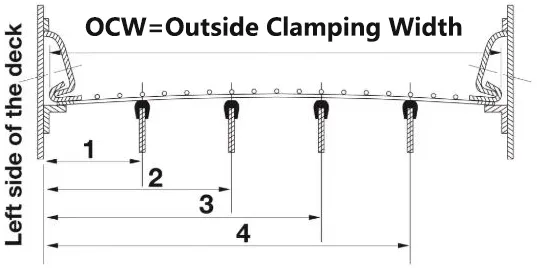

- B. Outside Clamping Width (OCW)
- C. Distance between side plates (OCW should be 1-inch to 1-½- inch less than this distance)
- D. Overall length of wire cloth (including any overlap)
- E. Formed or shrouded length of section if shorter thanwire cloth length (because of lap)
- F. Lap Length

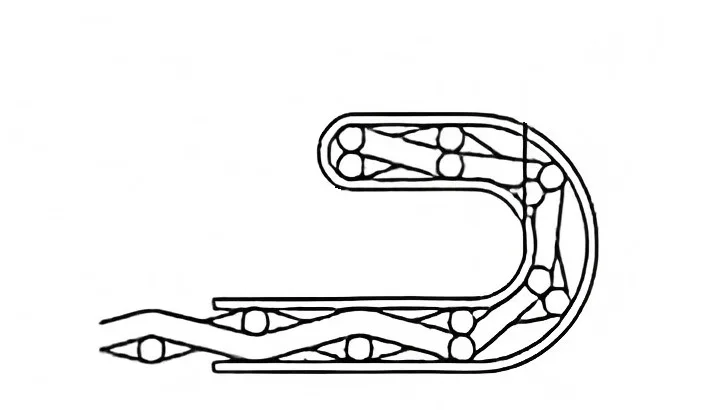

Hook Type:

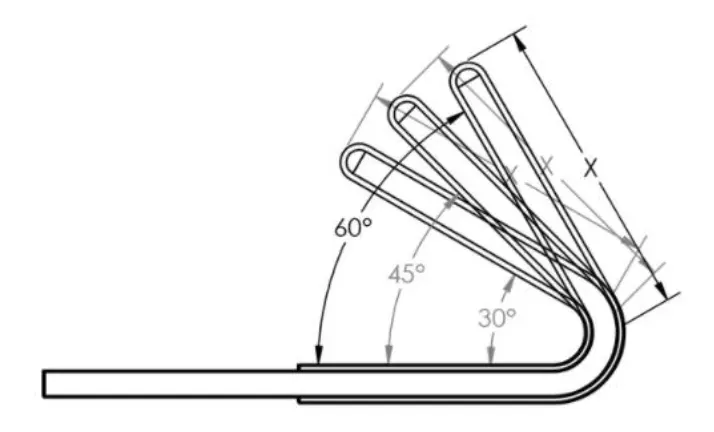

Common Side-Tension Hook Style
Direction:
- Both Hooks Same Direction
- One Hook Up One Hook Down
Slot Direction
-
S-Slot
⊥Perpendicular to Flow
-
L-Slot
∥ Parallel to Flow

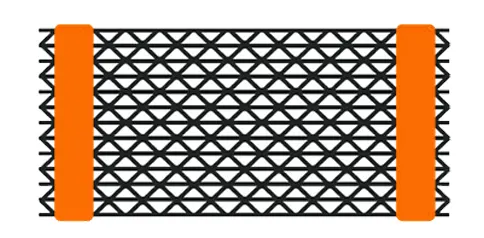

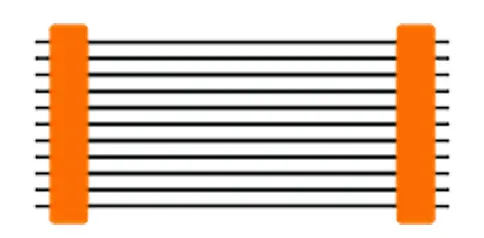

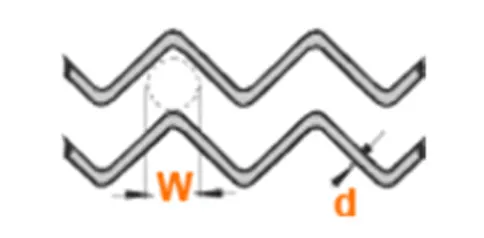

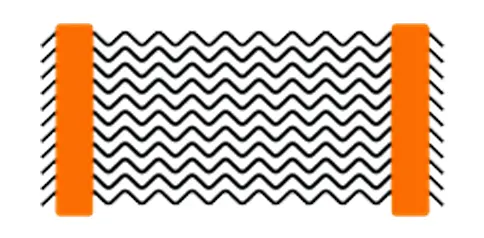

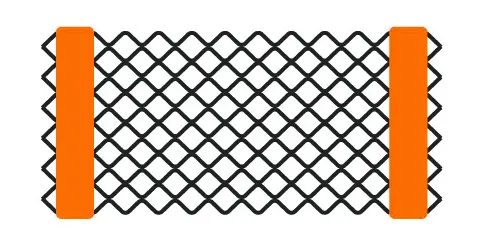

Self-Cleaning Screens
- # of Bars:______________
- # of Strips:_____________
Measure from center out
←________ ________→
Bar Spacing:________________
Lap:
- Y
- N

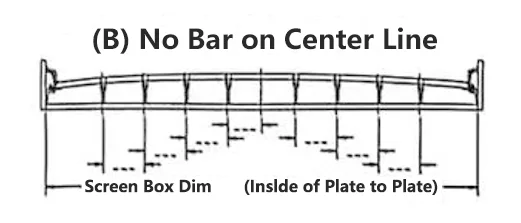

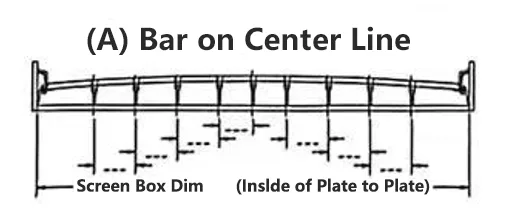

Bar on Center:
- Y
- N
Contact ANPENG Engineering Team
Tell us your material, moisture, target cut size, throughput, and screen model. We will suggest the best media type (wire / self-cleaning / PU / rubber / plate), aperture, wire diameter, and a segmented deck layout.
