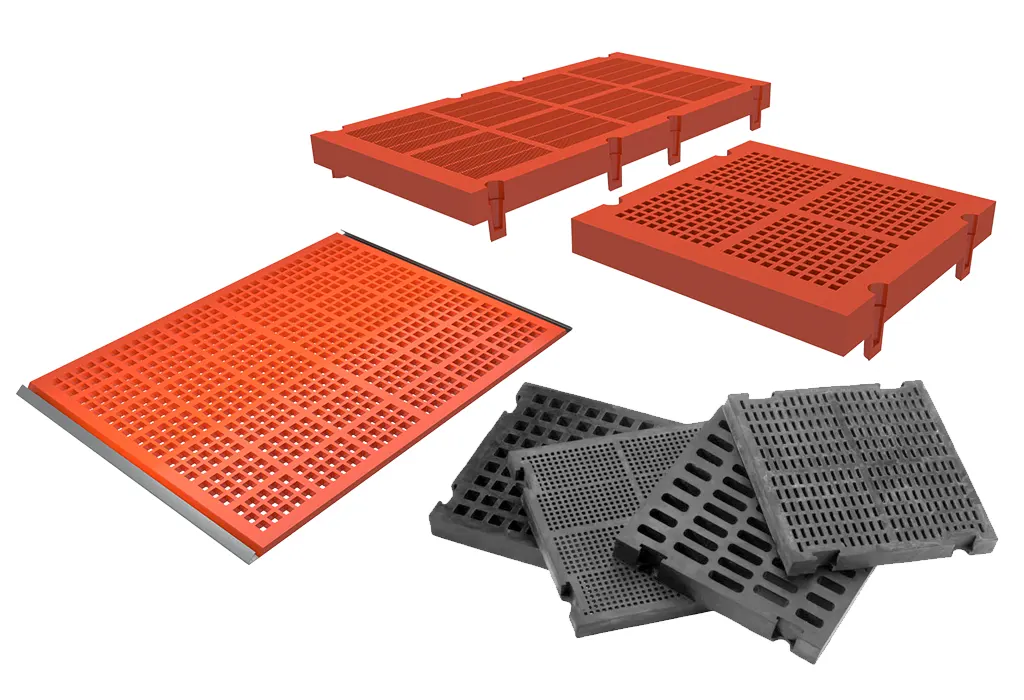

Mining Screen Panels
Anpeng manufactures durable Mining Screen Panels for vibrating screens used in mining and mineral processing. These modular screen media panels are designed to handle abrasive feed, heavy impact, and demanding screening conditions—while helping reduce downtime through fast, panel-by-panel replacement. As a direct manufacturer, we provide custom module sizes, opening patterns, thickness options, and fixing systems to match your existing screen deck.
What Are Mining Screen Panels?
Mining screen panels are modular screen media installed on vibrating screens to separate ore and mineral aggregates into different size ranges. Compared with traditional screen cloth, panels are often chosen when operations need stronger wear resistance, better impact handling, reduced noise, or faster replacement. Panel selection typically depends on your target cut size, material condition (dry or wet), abrasion level, impact load, and the fixing system used on your screen deck.
Mining Screen Panel Types We Manufacture
If you are unsure whether PU or rubber is better for your site, share your ore type, moisture condition, and deck position. We’ll recommend the most practical option.
Polyurethane (PU) Screen Panels
PU screen panels are widely used in mining due to their strong wear resistance and stable performance, especially in wet screening or abrasive applications. Openings can be produced in round, square, or slotted patterns depending on your cut size and material behavior.
Common advantages
Long wear life in abrasive duties
Stable apertures for consistent sizing
Suitable for wet screening environments
Multiple opening patterns available

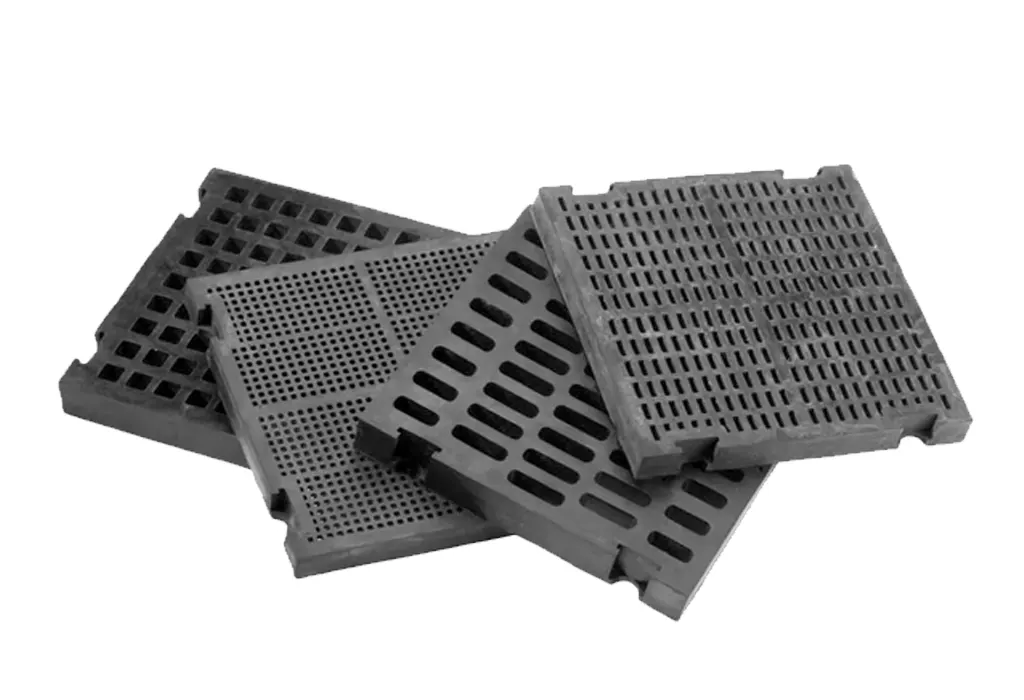

Rubber Screen Panels
Rubber panels are often selected when impact load is high or when noise reduction is a priority. They can help absorb vibration and reduce damage from large lumps.
Common advantages
Excellent impact resistance
Noise reduction compared to metal media
Suitable for heavy-duty scalping and harsh feed
Key Benefits in Mining Applications
Reduced downtime: replace individual panels instead of changing full decks
Wear resistance: panel materials and thickness options match abrasive duties
Stable sizing: consistent openings help control product gradation
Impact handling: suitable options for heavy feed and scalping positions
Lower noise options: rubber and PU can help reduce operating noise
Fixing & Mounting Systems
The fixing system is one of the most important differences between panels and mesh. Mining screen panels are typically designed to match specific deck configurations and installation styles. We can produce panels to suit common systems such as bolt-down mounting, pin & clip systems, and rail/stringer arrangements (depending on your deck).
To ensure accurate matching, you can send:
Existing panel samples (or photos with measurements)
Screen deck drawings or machine model details
Fixing method and mounting layout
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Mining Screen Panels (Modular Screen Media for Vibrating Screens) |
| Manufacturer | Anpeng (Direct Manufacturer) |
| Panel Material Options | Polyurethane (PU), Rubber (optional), Composite / reinforced options (upon request) |
| Opening Type | Round, Square, Slotted (custom patterns available) |
| Opening Size (Aperture) | 0.3–100 mm (custom available) |
| Panel Thickness | 10–60 mm (custom available) |
| Module / Panel Size | Custom per screen deck layout (modular panels to match your system) |
| Fixing / Mounting System | Bolt-down, Pin & Clip, Rail/Stringer system (match your existing deck) |
| Reinforcement | Steel inserts / reinforced frame (optional, based on duty and mounting) |
| Operating Condition | Suitable for dry or wet screening (selected by material, aperture, and duty) |
| Recommended Duty | Mining scalping, sizing, and classification on vibrating screens (abrasion & impact duty) |
| Typical Applications | Iron ore, copper ore, gold ore, coal, mineral aggregates, and mining screening circuits |
| Customization | Opening pattern, aperture, thickness, module size, fixing method, and material grade available upon request |
| Quotation Info Needed | Panel material, aperture, opening type, thickness, module size, fixing system, quantity, ore type & dry/wet condition |
| Packing | Export pallets or cartons with protective wrapping; labeled by specification & order ID |
Why Choose Anpeng
We control key manufacturing steps to keep apertures, thickness, and module dimensions consistent, which helps ensure reliable fit and predictable performance.
We produce panels to match your deck layout and fixing system, helping reduce installation issues and improving stability during vibration.
Share your ore type, cut size, and deck details. We will recommend aperture, thickness, and panel type that fits your duty and operating condition.
FAQs
What are mining screen panels used for?
Mining screen panels are used as modular screen media on vibrating screens to separate ore and mineral aggregates by size. They are common in mining circuits for scalping, sizing, and classification where wear and impact are high and stable screening performance is required.
PU vs rubber screen panels—how do I choose?
PU panels are often selected for strong wear resistance and stable apertures, and they perform well in many abrasive or wet screening applications. Rubber panels are typically chosen for high impact areas or when noise reduction is important. The best choice depends on ore type, deck position, and whether the feed is wet or sticky.
Which fixing system do I need (bolt-down, pin & clip, rail)?
The fixing system must match your existing screen deck design. If you are replacing current panels, the simplest approach is to match the same fixing style. If you’re upgrading, we can recommend a practical system based on your deck layout and maintenance preference. Photos and deck measurements help confirm compatibility quickly.
Can you make custom module sizes and openings?
Yes. As a manufacturer, we provide custom panel sizes, opening patterns (round/square/slot), apertures, and thickness options. If you send a deck drawing or sample panel, we can produce direct-fit replacements.
How do panels reduce downtime compared with wire mesh?
Panels allow section-by-section replacement. Instead of removing and re-tensioning a full deck, you can replace only worn modules. This can reduce shutdown time and make maintenance more predictable, especially on large multi-deck screens.
What affects panel wear life in mining?
Wear life depends on abrasion level, impact load, deck position, material moisture, and operating parameters. Panel thickness, reinforcement, aperture design, and the correct material selection (PU/rubber) all influence service life. Sharing your operating conditions helps us recommend a spec that lasts.
What information is needed for a quotation?
For an accurate quote, please provide panel material (PU/rubber), aperture and opening type, thickness, module size, fixing system, quantity, and basic working conditions (ore type + dry/wet). If exact data isn’t available, photos of existing panels with measurements are also helpful.
