Polyurethane Trommel Screens
Durable, anti-clogging trommel screen media built for long wear life, stable sizing, and fast panel replacement.
Key Benefits
Longer wear life in abrasive materials
Reduced blinding/pegging for wet or sticky feeds
Lower noise and vibration than steel screens
Modular panels for quick maintenance and less downtime

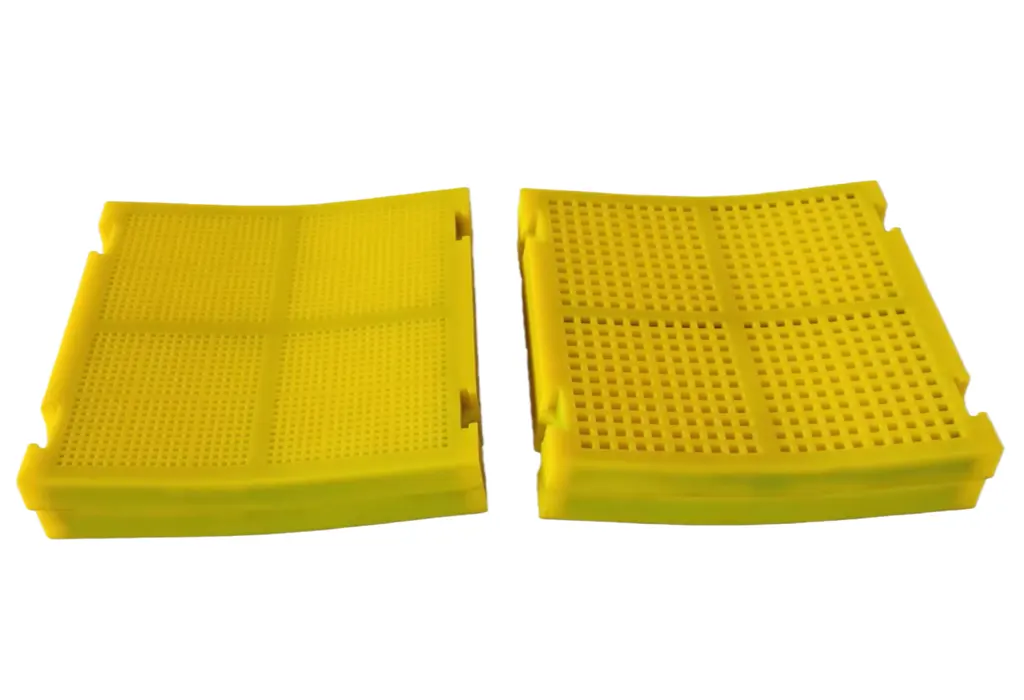

What Are Polyurethane Trommel Screens?
Polyurethane Trommel Screens (also called PU trommel screen panels) are modular screening media installed inside a rotating trommel drum. They replace traditional steel perforated plates or wire sections with a wear-resistant polyurethane surface, helping operators improve service life, reduce noise, and maintain consistent separation—especially in abrasive or wet screening conditions.
Anpeng manufactures custom PU trommel panels to match your trommel layout, fixing method, and required cut size. Whether you run aggregate, mining, coal, or recycling applications, we help you balance throughput, open area, and wear life for stable performance.
Why Polyurethane Trommel Screens
Polyurethane resists abrasion and chipping, making it suitable for high-wear zones where steel screens can wear quickly or become noisy.
With the right aperture shape (slot, rectangular, square, etc.) and panel thickness, PU panels can reduce blinding/pegging in wet screening, clay-bearing material, or sticky fines.
PU helps reduce noise and vibration compared with metal screening surfaces, and modular panels are easier to handle during replacement.

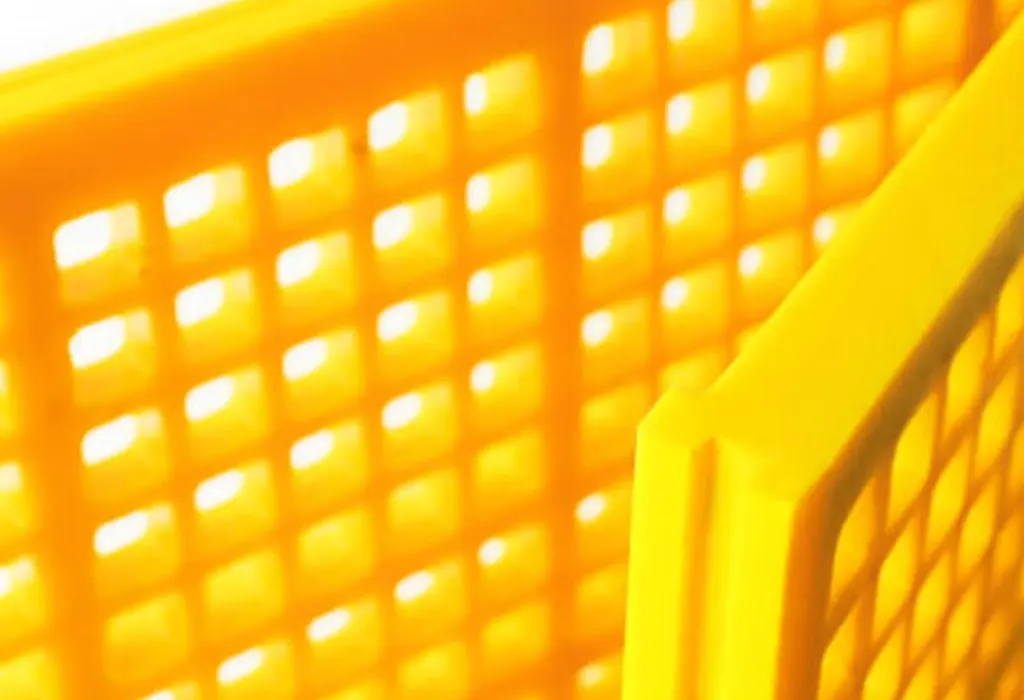

Aperture & Hole Options
We manufacture polyurethane trommel screens with square, round, and slot (rectangular/long) apertures to fit different cut sizes and operating conditions. Square and round holes are widely used for general sizing and scalping, while slot openings help reduce pegging and maintain screening efficiency when material is wet, sticky, or clay-rich.
To fine-tune performance, we also offer custom hole patterns matched to your gradation and target open area, plus design upgrades such as reinforced bridges/ribs and edge strengthening for high-wear zones. If your drum has different screening stages, we can build zoned layouts (different apertures in different sections) to balance throughput, separation accuracy, and wear life.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Polyurethane Trommel Screens (PU Trommel Screen Panels) |
| Manufacturer | Anpeng (Direct Manufacturer) |
| Screen Type | Modular PU Trommel Panels for Rotary / Trommel Drums |
| Material | Wear-Resistant Polyurethane (PU) |
| Reinforcement (Optional) | Steel Inserts / Embedded Reinforcement for High-Impact Zones |
| Fixing / Mounting Method | Bolt-On; Pin & Sleeve; Clip-On (match your trommel system) |
| Panel Size | Custom per trommel layout (OEM matching available) |
| Panel Thickness | 10–60 mm (custom available) |
| Opening Size (Aperture) | 3–80 mm (custom available) |
| Hole Shape | Square; Round; Rectangular Slot; Long Slot; Custom Patterns |
| Open Area | Optimized by aperture & bridge design to balance throughput and wear life |
| Hardness | 70–95 Shore A (custom available) |
| Operating Condition | Dry or Wet Screening; Abrasive and Impact Duty |
| Typical Applications | Aggregate & Quarry; Mining & Minerals; Coal; Washing Plants; Recycling |
| Customization | Aperture, thickness, hardness, reinforcement, panel size, and fixing system available upon request |
| Quotation Info Needed | Trommel model/layout, aperture (mm) & hole shape, panel size (L×W), fixing method, material type & wet/dry condition, quantity |
| Packing | Export pallets or wooden cases with protective wrapping; labeled by specification & order ID |
Why Choose Anpeng as Your Polyurethane Trommel Screens Manufacturer
Anpeng is a screening media manufacturer focused on mining and aggregate applications. We produce polyurethane trommel screens to help you improve wear life, reduce downtime, and maintain stable sizing—batch after batch.
We support OEM matching and custom manufacturing to fit your panel layout, fixing method, and open area requirements.
Aperture shape, thickness, hardness, and reinforcement options are selected to balance throughput and wear life for your specific material.
Share your drawing and screening targets to receive a clear recommendation, quick quotation, and stable production lead time.
FAQs
What’s the difference between PU trommel screens and steel perforated plate?
PU panels typically offer better wear resistance and lower noise, and can reduce maintenance frequency. Steel plate may be preferred for very high-temperature or special structural constraints.
Which hole shape is best for wet or sticky material?
Rectangular or long-slot apertures are often used to reduce pegging and improve anti-clogging performance, depending on your cut size and feed behavior.
Do I need steel reinforcement?
Reinforcement is recommended for high-impact zones, heavy tonnage, or areas prone to tearing. For lighter duty sections, standard PU may be sufficient.
Can you manufacture according to my trommel’s drawing?
Yes. We produce panels based on your trommel model, layout drawing, hole pattern, and fixing method.
What information do you need for a quote?
Trommel drawing/layout, required aperture size and shape, material type (abrasive/wet), fixing method, and expected throughput.
Can you supply different apertures in different sections of the trommel?
Yes. Zoned layouts (e.g., scalping section vs sizing section) are common to optimize performance and open area.
