Trommel Screen Mesh
Anpeng manufactures trommel screen mesh for mining, aggregates, sand & gravel, and recycling applications. Built to handle abrasion, impact, and continuous rotation, our trommel meshes help you keep consistent sizing, improve throughput, and reduce downtime caused by fast wear or frequent replacements.
-
High open area options for faster screening
-
Wear-resistant materials for abrasive feed
-
Strong edges and secure mounting compatibility
-
Custom-fit sections to match your trommel drum
-
Stable performance for scalping and sizing duties
What Is Trommel Screen Mesh?

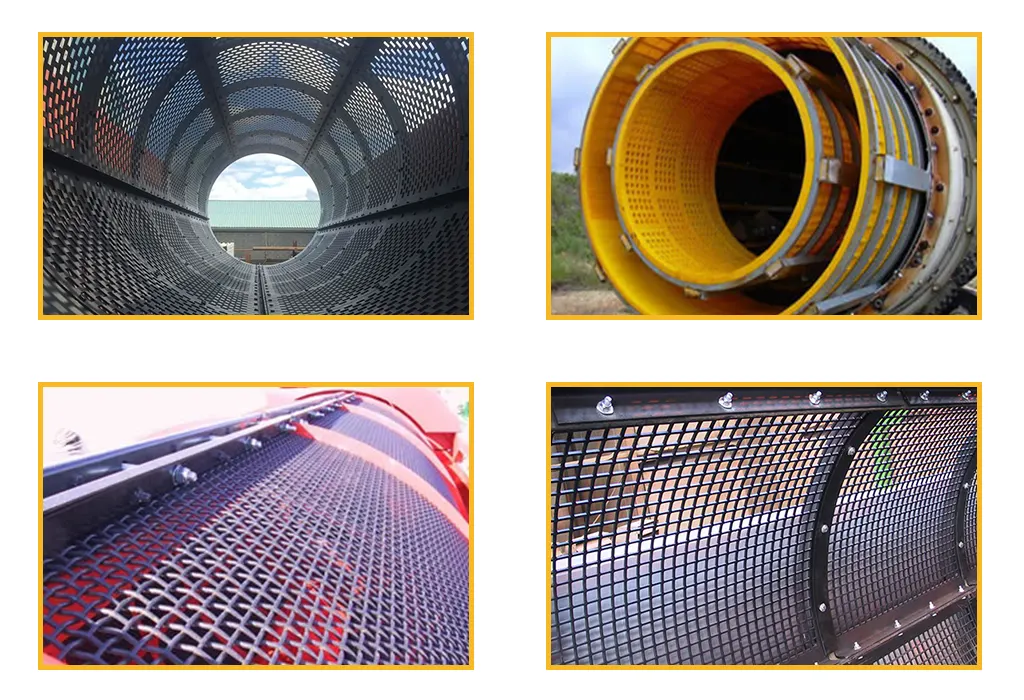

Trommel screen mesh is the screening surface installed on a rotating trommel drum to separate material by size. As the drum rotates, material tumbles and passes through the openings while oversize moves to discharge. The right mesh improves screening efficiency, product consistency, and operating cost per ton.
Trommel Screen Mesh Types We Manufacture
Below are the most common screening media options. Choose by feed condition, target cut size, impact level, and mounting system.

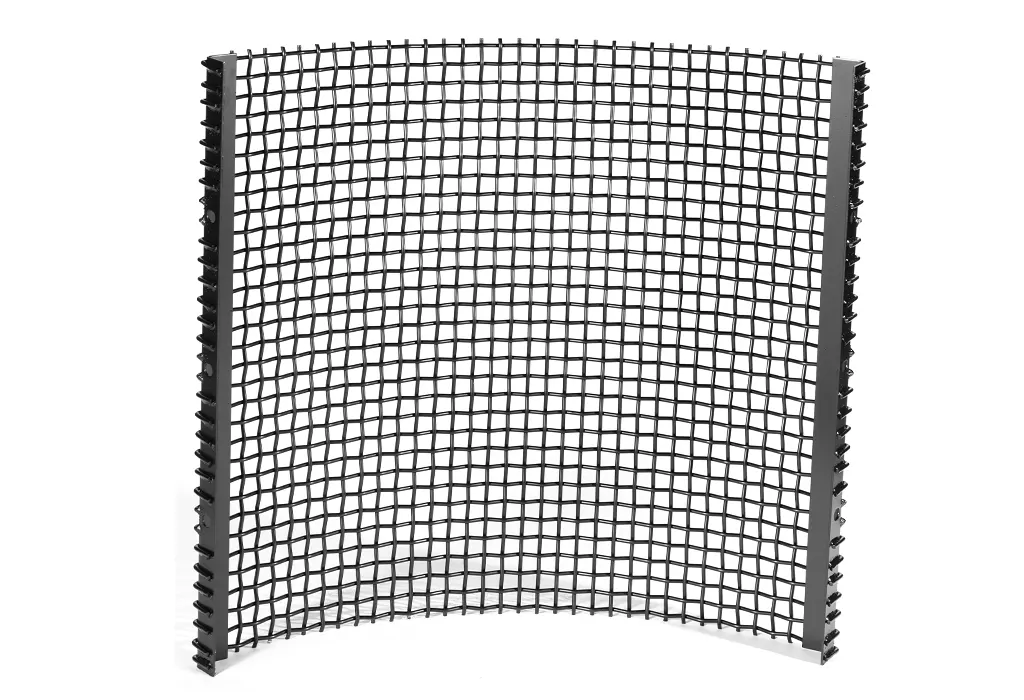

Woven Wire Trommel Screen Mesh
Woven wire mesh is a popular choice when throughput and open area matter most. It delivers efficient screening for many dry or moderately wet materials and is often used for sizing applications.

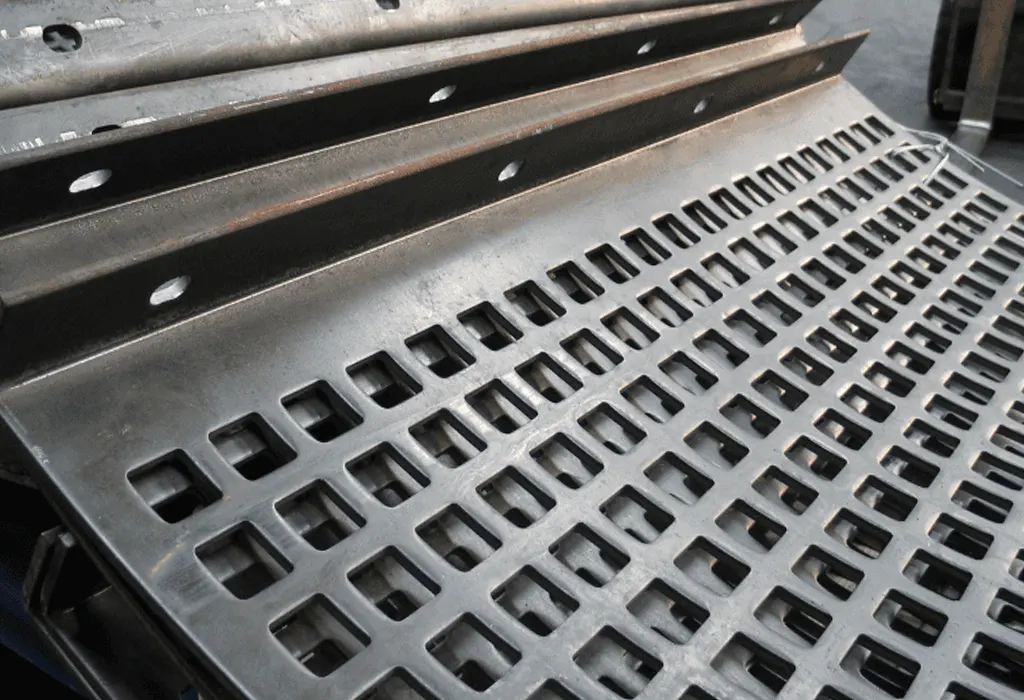

Perforated Plate Trommel Screen
Perforated plate trommel screens are heavy-duty solutions designed for coarse screening, large feed, and high-impact loads. The strong plate structure helps resist deformation and premature failure.
Product Specifications
| Item | Woven Wire Trommel Mesh | Perforated Trommel Screen Plate |
|---|---|---|
| Material | High Carbon Steel / Spring Steel (65Mn) / SS304/316 | Carbon Steel / Wear-Resistant Steel (optional) / SS (optional) |
| Weave / Hole Type | Crimped / Intermediate Crimp / Lock Crimp (as required) | Round / Square / Slot / Rectangular (custom patterns) |
| Opening / Hole Size | 2–100 mm (custom) | 5–150 mm (custom) |
| Wire / Thickness | Wire Ø 1.0–12.0 mm | Plate 3–20 mm |
| Open Area | 35%–75% (depends on aperture & wire) | 20%–60% (depends on hole & pitch) |
| Section Size | Custom to trommel drum (width/length per your drawing) | |
| Edge Finishing | Plain / Folded / Reinforced / Hooked (optional) | Flanged / Folded / Reinforced edge, wear strips (optional) |
| Mounting | Clamp bars / bolts / rails (match your existing system) | |
| Surface Treatment | Plain / Galvanized / Coated (optional) | Plain / Galvanized / Coated (optional) |
| Working Temperature | -30°C to 120°C (material dependent) | -30°C to 200°C (material dependent) |
| Recommended Use | High throughput sizing; general aggregates screening | Heavy impact scalping; coarse screening & recycling |
| Typical Service Life | Varies by abrasion, impact load, moisture, and drum RPM | |
Why Choose Anpeng as Your Trommel Screen Mesh Manufacturer
We produce mesh sections and perforated plates to match your drum size, segment layout, and mounting system.
Our options are designed for abrasion, impact, and continuous rotation, helping you reduce cost per ton.
We control key production steps and dimensional checks to keep aperture accuracy and fit consistent.
FAQs
What is the best trommel screen mesh for mining?
For coarse scalping and heavy impact, perforated plate trommel screens are often preferred. For high-capacity sizing, woven wire mesh with optimized open area is widely used. The best choice depends on feed size, abrasion, and moisture.
Woven wire mesh vs perforated plate—how do I choose?
Woven wire provides higher open area and faster screening in many sizing applications. Perforated plate offers stronger impact resistance and durability for coarse or heavy-duty conditions.
What aperture shape is most common for trommel screens?
Round openings are common for many trommel duties, while square or slot openings may be used depending on separation goals and clogging risk. We can recommend the best shape based on your material.
What affects service life the most?
Abrasion level, feed size, moisture, installation tension, and edge protection all impact service life. Correct wire diameter or plate thickness selection is critical.
Can you produce screen sections to match our existing drum?
Yes. Provide your drum size, segment layout, and mounting photos, and we can manufacture compatible sections.
What information do you need for a quotation?
Drum diameter and length, aperture size/shape, material condition (wet/dry), feed size range, mounting method, and quantity.
How can I reduce trommel screen clogging?
Correct aperture size and shape, proper screen selection, and matching the mesh to moisture/fines content are the main solutions. Send your material details and we will recommend a configuration to reduce plugging.
Do you offer samples?
Yes. Samples can be provided depending on the product type and specification.
