Aggregate Screen Mesh
Anpeng manufactures high-performance Aggregate Screen Mesh for sizing and separation in quarry, mining, sand & gravel, and aggregate processing lines. Our woven wire screen panels are engineered for stable openings, high screening efficiency, and consistent product grading. As a direct manufacturer, we provide custom aperture sizes, wire diameters, panel dimensions, and edge finishing—helping you improve throughput, reduce downtime, and control replacement costs.
Aggregate Screen Mesh Manufacturer in China
We are an aggregate screen mesh manufacturer in China, supplying durable screening solutions for quarrying, mining, and construction industries. We offer various mesh materials, opening sizes, and customized specifications to meet different screening requirements. Our products help improve material separation, resist wear, and maintain reliable performance in demanding operating conditions.

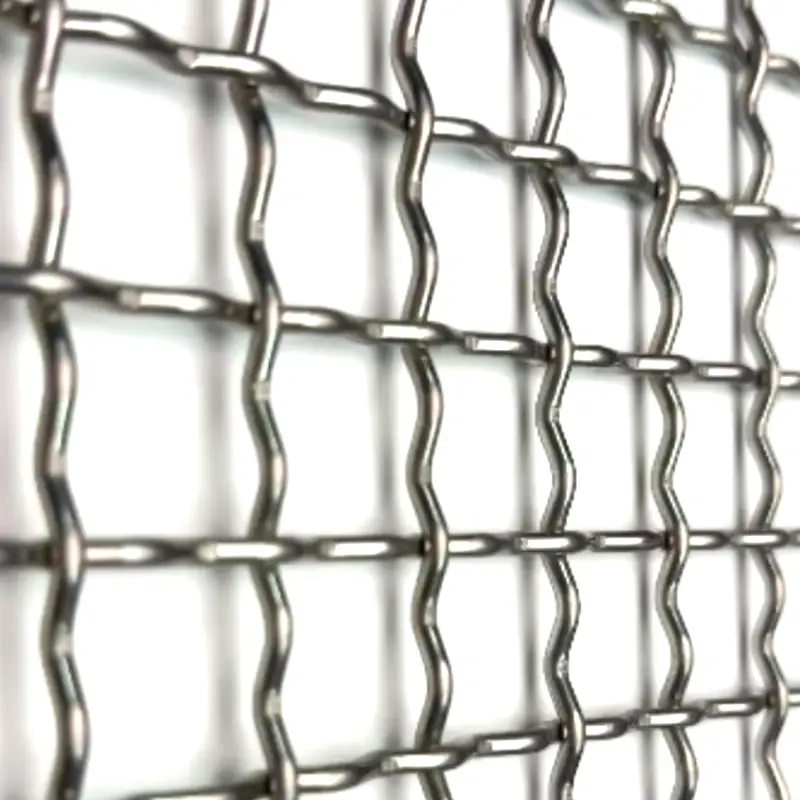

Woven Wire Aggregate Screen Mesh
We supply woven wire aggregate screen mesh for classifying sand, gravel, crushed stone, and other aggregates. Our mesh features consistent openings and flexible specifications to meet different screening requirements. We offer various wire diameters and aperture sizes to help customers achieve accurate separation and reliable screening performance.
Polyurethane Aggregate Screen Mesh
We provide polyurethane aggregate screen mesh for demanding quarrying and aggregate processing applications. Our screens offer excellent abrasion resistance, impact absorption, and reduced noise during operation. We customize panel dimensions and opening sizes to suit different screening systems, helping customers reduce maintenance frequency and improve operational efficiency.

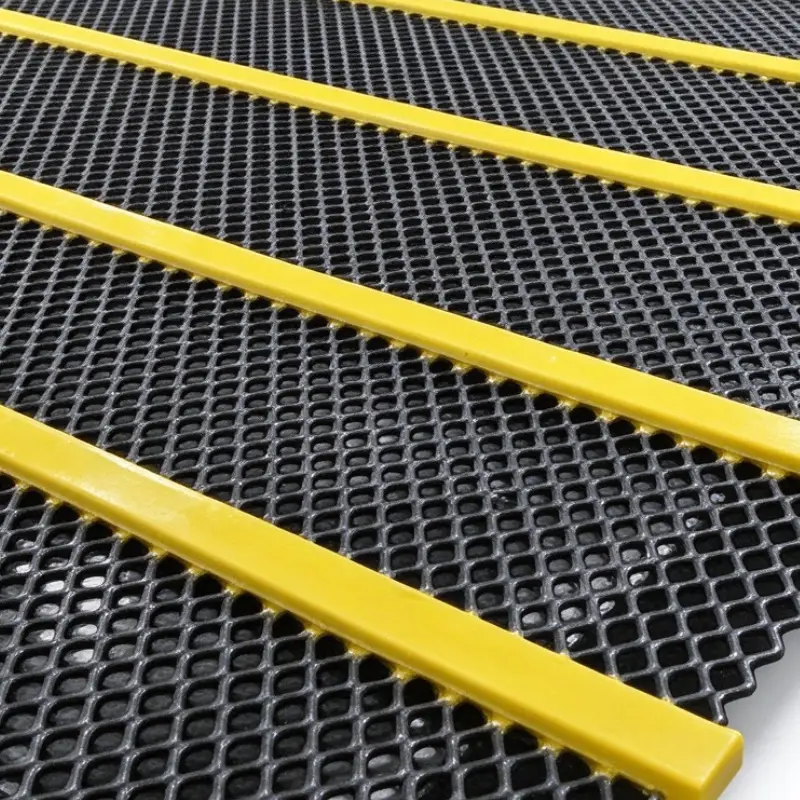

Self-Cleaning Aggregate Screen Mesh
We manufacture self-cleaning aggregate screen mesh to help reduce clogging and blinding during material separation. Our mesh designs support continuous material flow when processing damp, sticky, or irregularly shaped aggregates. We offer suitable configurations for compatible screening equipment, helping customers maintain throughput and reduce manual cleaning requirements.
Welded Wire Aggregate Screen Mesh
We supply welded wire aggregate screen mesh for screening applications requiring stable openings and a rigid structure. Our mesh is suitable for separating various aggregate sizes in construction and processing facilities. We offer different wire diameters, opening dimensions, and panel sizes to match specific equipment and operating requirements.

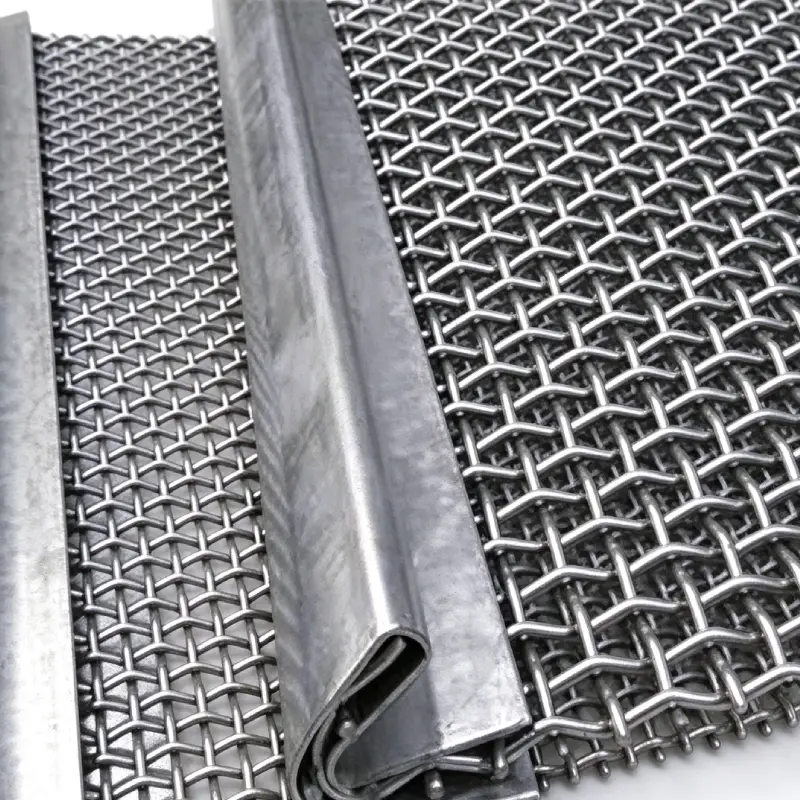

Stainless Steel Aggregate Screen Mesh
We provide stainless steel aggregate screen mesh for applications requiring corrosion resistance and dependable screening performance. Our mesh is available in different opening sizes and wire specifications to accommodate various materials. We help customers select suitable mesh configurations for their operating environments, supporting consistent separation and long-term usability.
Aggregate Screen Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Aggregate Screen Mesh (Woven Wire Screening Media) |
| Manufacturer | Anpeng (Direct Manufacturer) |
| Screen Type | Crimped Woven Wire Screen Mesh; Anti-Clogging / Self-Cleaning Mesh (optional) |
| Material Options | High-Carbon Steel, Spring Steel (65Mn), Stainless Steel 304/316 (optional) |
| Weave / Crimp Type | Pre-crimp, Intermediate Crimp, Lock Crimp (matched to aperture & screening duty) |
| Opening Size (Aperture) | 2–120 mm (custom available) |
| Wire Diameter | 1.0–14.0 mm (custom available) |
| Open Area | Optimized by aperture & wire diameter to balance throughput and wear life |
| Panel Size | Custom per screen deck layout (panel or full-sheet options) |
| Edge Finish | Plain edges, Hooked edges, Reinforced edges (match your tensioning system) |
| Mounting / Tensioning | Clamp bar tensioning; bolt-down or modular fixing (as required) |
| Surface Finish | Plain / Oiled (rust protection) / Galvanized (optional) / Coated (optional) |
| Recommended Duty | Scalping, sizing, and final screening on vibrating screens in aggregate processing |
| Typical Applications | Quarry, sand & gravel plants, mining, construction aggregates, recycled aggregates |
| Customization | Aperture, wire diameter, weave type, panel size, edge finishing, and material grade available upon request |
| Quotation Info Needed | Opening (mm), wire diameter (mm), panel size (L×W), edge type, quantity, feed condition (dry/wet/clay) |
| Packing | Bundles or export pallets with protective wrapping; labeled by specification & order ID |
FAQs
What is aggregate screen mesh used for?
Aggregate screen mesh is used on vibrating screens to classify aggregates such as crushed stone, gravel, and sand into different size ranges.
It can be installed for scalping to remove oversize and protect crushers, for sizing to separate material into multiple grades on multi-deck screens, or for final screening to control the finished product gradation before stockpiling. The right mesh helps improve screening efficiency, stabilize output quality, and reduce unnecessary recirculation in the plant.
How do I choose the right aperture (opening size)?
Aperture should be chosen according to the target cut size and the grading specification you need. In practice, it’s also affected by material shape, moisture, and fines content. For example, wet or sticky material may require a slightly different approach than dry, free-flowing aggregates. If you share your target sizes and feed condition, we can recommend an opening range that balances capacity and accuracy.
How do I select wire diameter for better wear life?
Wire diameter is typically selected based on abrasion level, impact load, and expected service life. Thicker wire generally increases wear life and strength, which can be important in heavy-duty quarry applications, while thinner wire can increase open area and throughput. The best choice is a balance between capacity and durability, and we can suggest a suitable wire diameter once we understand your material type, tonnage, and operating conditions.
What’s the difference between woven wire mesh and self-cleaning mesh?
Woven wire mesh is a standard, high-efficiency option for most dry screening applications and is widely used for aggregate sizing. Self-cleaning (anti-clogging) mesh is designed to reduce blinding and pegging when material contains moisture, clay, or sticky fines. If your current screens frequently blind or require frequent cleaning, self-cleaning designs can help keep capacity more stable and reduce downtime.
How can I reduce blinding and pegging on my screen deck?
Blinding and pegging usually happen when moisture, clay, or flaky particles block the openings. Choosing the right opening and wire ratio is important, but in many cases, switching to anti-clogging/self-cleaning mesh is the most effective solution. It can also help to confirm that the deck tensioning is correct and that the mesh type matches your feed condition and vibration parameters.
Can you make hooked edges and custom panel sizes?
Yes. As a manufacturer, we produce custom screen panels based on your screen deck layout and mounting system. You can specify panel length and width, edge type (hooked, plain, reinforced), and other details so the mesh fits properly and maintains stable tension during operation. If you can provide a deck drawing or your existing screen panel measurements, we can match them accurately.
What information do you need to quote aggregate screen mesh?
For an accurate quotation, it helps to provide the opening size, wire diameter, panel size (L×W), edge type, and required quantity. If you can also share whether the material is dry or wet, and what you are screening (gravel, limestone, granite, etc.), we can recommend the most suitable specification and quote accordingly.
